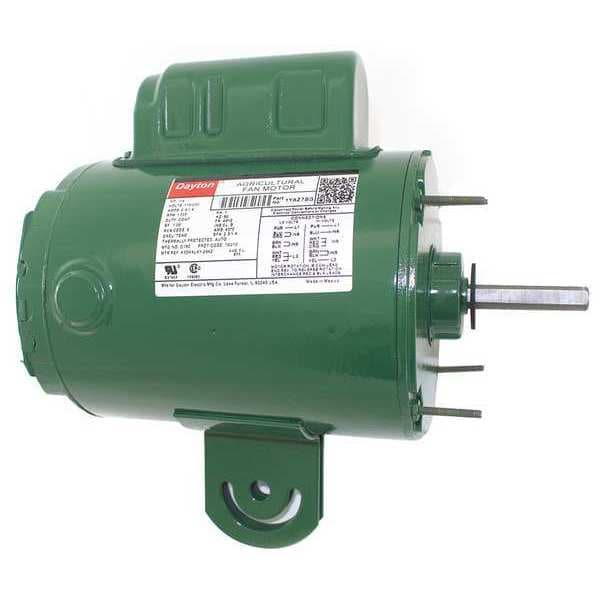

Dayton Agricultural Fan Motor, Permanent Split Capacitor, 1/4 HP, 115/230V AC, 1,725 Nameplate RPM 1YAZ7BG - main

Agricultural Fan Motor, Permanent Split Capacitor, 1/4 HP, 115/230V AC, 1,725 Nameplate RPM

  • Mfr # 1YAZ7BG

  • Zoro # G3244701

product price:  $306.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
48YZ
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1YAZ7BG
Zoro #
G3244701
UPC #
190735150191
Country of Origin
Mexico

Dimensions

Overall Length
10 1/2 in
Shaft Length
2 7/16 in
Length Less Shaft
8 1/16 in
Shaft Dia.
1/2 in

Details

Item
Agricultural Fan Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/4
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
48YZ
Motor Service Factor
1
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
1,725
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Yoke
Motor Sub Application
Agricultural Fan
Motor Shaft Design
Double-Flat
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258501), UL Recognized (E37403)
Frame Material
Rolled steel
Item - Farm Duty Motors
Agricultural Fan Motor
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Full Load Amps
2.3/1.4 A
Max. Ambient Temperature
40 Degrees C
Ins. Class
B
Duty
Continuous Air Over
Finish
Green
Motor Bearings
Ball
Nominal Efficiency
68.5 %
Capacitor Required
Included
Hz
60 Hz
Includes
5/8 in Shaft Adapter, Extended Thru Bolts, Gasketed Capacitor Cover, Shaft Key, Shaft Slinger
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous

Description

Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 2.3/1.4 A, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Yoke, Motor Mounting Position All Angle, Motor Frame Material Steel, Finish Green
