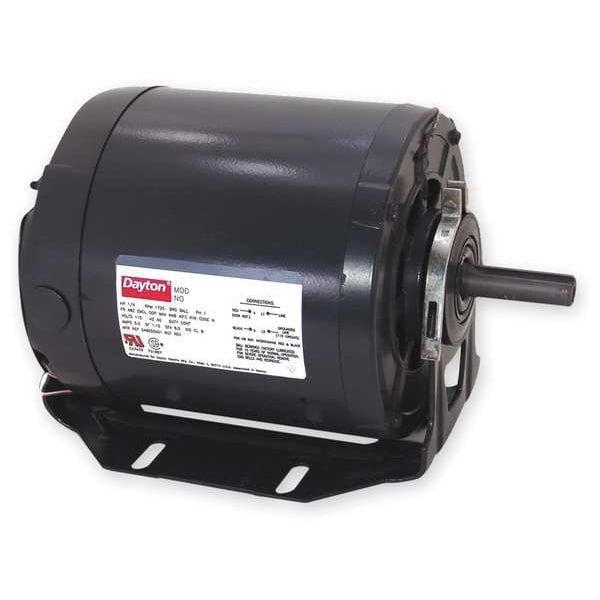

Dayton Agricultural Fan Motor, Split-Phase, 1/2 HP, 115/230V AC, 1,725 Nameplate RPM, 56 Frame 1YBV9 - main

Agricultural Fan Motor, Split-Phase, 1/2 HP, 115/230V AC, 1,725 Nameplate RPM, 56 Frame

  • Mfr # 1YBV9

  • Zoro # G0601526

product price:  $464.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Phase
Single
HP
1/2
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1YBV9
Zoro #
G0601526
UPC #
190735150405
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Overall Length
11 1/16 in
Shaft Length
1 15/16 in
Length Less Shaft
9 1/8 in

Details

Item
Agricultural Fan Motor
Motor Design
Split-Phase
Phase
Single
HP
1/2
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56
Motor Service Factor
1.25
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
1,725
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Cradle Base
Motor Sub Application
Agricultural Fan
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258501), UL Recognized (E37403)
Hz
60 Hz
Duty
Continuous Air Over
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Includes
Shaft Key, Shaft Slinger, Gasketed Wiring Compartment Cover
Motor Bearings
Ball
Finish
Dayton Gray
Item - Farm Duty Motors
Agricultural Fan Motor
Ins. Class
B
Frame Material
Rolled steel
Max. Ambient Temperature
40 Degrees C
Full Load Amps
7.6/3.8 A
Nominal Efficiency
68.7 %
Duty Cycle
Continuous
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Application
Farm Duty
Replacement For
6K771

Description

Farm Duty Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 7.6/3.8 A, 56 Frame, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Motor Frame Material Steel, Finish Dayton Gray
