Shop DAYTON

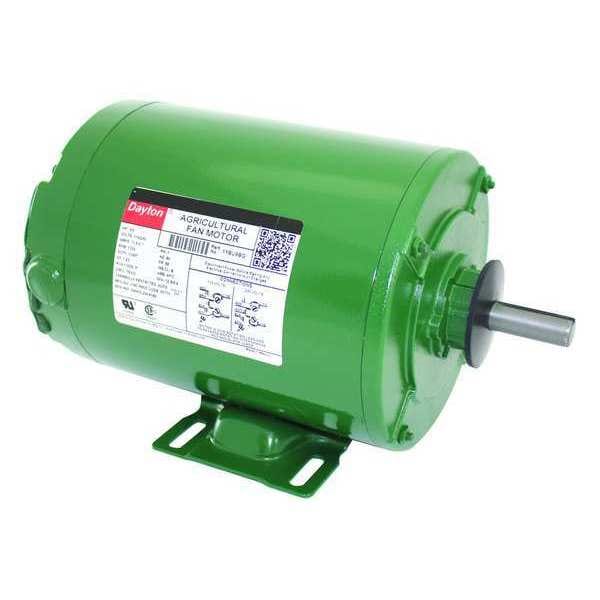

Agricultural Fan Motor, Split-Phase, 3/4 HP, 115/230V AC, 1,725 Nameplate RPM, 56 Frame

  • Mfr # 1YBU9BG
  • Zoro # G0333146
product price:
$
349.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Phase
Single
HP
3/4 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1YBU9BG
Zoro #
G0333146
UPC #
190735150375
Country of Origin
Mexico

Dimensions

Length Less Shaft
9 7/16 in
Shaft Length
1 15/16 in
Shaft Dia.
5/8 in
Overall Length
11 3/8 in
Wire Rope Length
11 3/8 in
Length
11 3/8 in

Details

Item
Farm Duty Motor
Motor Design
Split-Phase
Phase
Single
HP
3/4 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56
Motor Service Factor
1.25
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
1,725 RPM
Motor Application
Agriculture
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Rigid Base
Motor Shaft Design
Keyed
Motor Sub Application
Poultry/Livestock Fan
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258501), UL Recognized (E37403)
Nominal Efficiency
66.3 %
Finish
Gray
Frame Material
Rolled steel
Full Load Amps
11.5/5.7 A
Hz
60 Hz
Ins. Class
B
Duty
Continuous Air Over
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Max. Ambient Temperature
40 Degrees C
Motor Bearings
Ball
Includes
Shaft Key, Shaft Slinger, Gasketed Wiring Compartment Cover
Item - Farm Duty Motors
Agricultural Fan Motor
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous
No. of Speeds
1
Application
Farm Duty
Replacement For
4K088
Drive Type
Belt Drive

Description

Farm Duty Motor, Single Phase, Motor Design Split-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 11.5/5.7 A, 56 Frame, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Frame Material Steel, Finish Gray
