Shop DAYTON

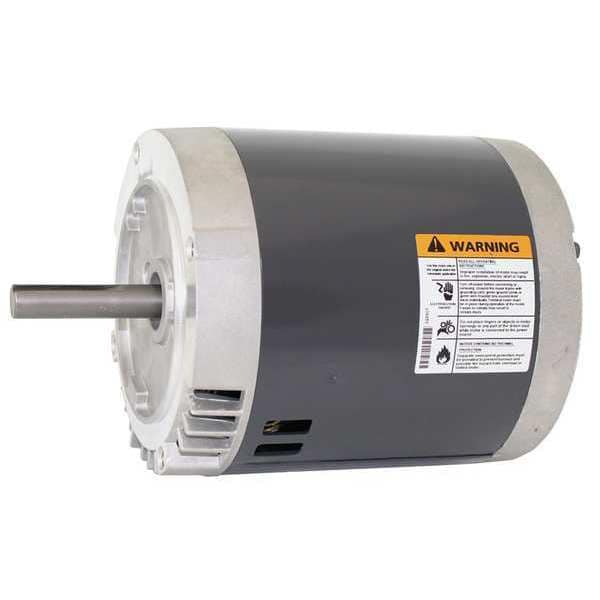

Belt Drive Mtr, SplitPh, ODP, 1/2HP, 1725rpm

  • Mfr # 6XH52BG

  • Zoro # G2276881

product price:
$
408.99
/ea
Free Shipping & Returns

Key Features

Standards
CSA Certified, UL Recognized
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Shaft Dia.
5/8 in
Ins. Class
B
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
6XH52BG
Zoro #
G2276881
UPC #
190735373064
Country of Origin
Mexico
Standards
CSA Certified, UL Recognized
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Ins. Class
B
Motor Application
HVAC/R
Phase
Single
Motor Shaft Rotation
CW/CCW
Duty
Continuous
Nameplate RPM
1,725
Full Load Amps
8.6 A
No. of Speeds
1
RPM Range
1,701-1,800
Frame
56CZ
Motor Design
Split-Phase
Motor Bearings
Ball
Max. Ambient Temp.
104 Degrees F
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Service Factor
1.25
Item
Belt Drive Motor
Motor Frame Material
Rolled Steel
Motor Sub Application
Belt Drive Fan/Blower
Motor Enclosure Design
Open Dripproof
Frame Material
Steel
Voltage
115V AC
Motor Mounting Type
Face
Motor Thermal Protection
None
HP
1/2
Hz
60 Hz
Duty Cycle
Continuous
Number of Speeds
1
Bearing Type
Ball
Frequency
60 Hz
Drive Type
Belt Drive
Nameplate Service Factor @ 60 Hz
1.25
Motor Enclosure Type
Open Drip Proof
Manufacturers Warranty
1 yr
Full Load Current @ 60 Hz
8.6 A
Application
Fan/Blower
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
All Angle
Insulation Class
B
Shaft Design
Keyed
Product Type
Fan and Blower Motor

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 8.6 A Full Load Amps, 56CZ Frame, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type C-Face, Motor Frame Material Steel, Motor Mounting Position All Angle, Shaft Length 2 7/16 in
