  5. Booster Pump, 2 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 11 Stage

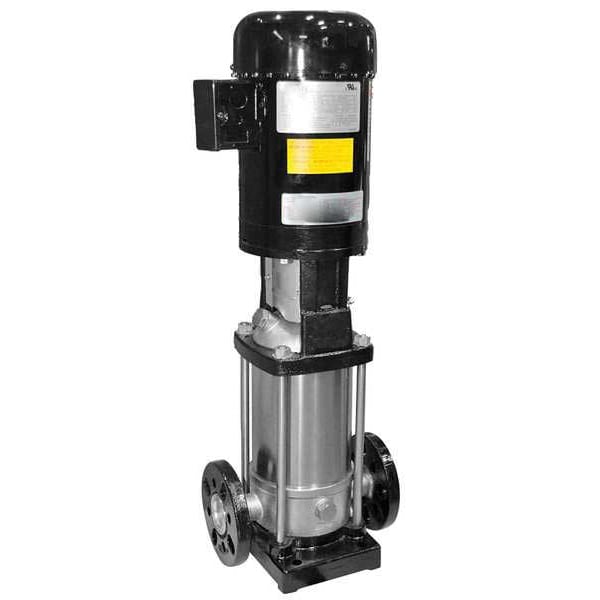

Dayton Booster Pump, 2 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 11 Stage 5UWL5 - main
Shop DAYTON

Booster Pump, 2 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 11 Stage

  • Mfr # 5UWL5

  • Zoro # G1958494

product price:  $1,896.99
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Inlet Size - Pumps
1-1/4 in Flanged
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5UWL5
Zoro #
G1958494
UPC #
190735353004
Country of Origin
India

Dimensions

Inlet Size - Pumps
1-1/4 in Flanged
Outlet Size - Pumps
1-1/4 in Flanged
Height
28 3/8 in
Width
9 in
Manufacturers Warranty Length
1 yr
Length
9 7/8 in
Max. Dia. Solids
5/64 in
Overall Width
9 in
Overall Height
28.38 in
Overall Length
9.88 in
Compatible Intake Pipe Size
1 1/4 in
Intake Size
1 1/4 in
Solid Diameter (Maximum)
0.07 in
Discharge Flange Size
1 1/4 in
Compatible Discharge Pipe Size
1 1/4 in
Manufacturer Warranty Length
1 yr
Inlet Diameter
1 1/4 in
Solids Diameter - Maximum
0.07 in
Discharge Diameter
1 1/4 in

Details

Item
Booster Pump
Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Number of Stages - Pumps
11
Max. Pressure - Pumps
148 psi
Housing Material - Pumps
Stainless Steel
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Motor Type
3-Phase
GPM @ 60 PSI
22
Bearing Type
Ball
Housing Material
Stainless Steel
Amps
5.6/2.8 A
Max. Case Pressure
245 psi
Best Efficiency GPM @ PSI
16 @ 104
Frame
56c
Motor Ambient Temp. Rating
40 Degrees C
Motor RPM
3,450 RPM
Motor Enclosure
Totally Enclosed Fan Cooled (TEFC)
Agency Compliance
c UL us
Stages
11
GPM @ 120 PSI
12
Suction Lift
0 ft
Wetted Materials
EPDM, Silicon Carbide, Stainless Steel
GPM @ 100 PSI
16
Duty
Continuous
Impeller Material
Stainless Steel
Voltage
208-230/460
Outlet
1-1/4" Flanged
GPM @ 80 PSI
19
Pump Mounting Position
Horizontal
HP
2
Max. Liquid Temp.
248 Degrees F
Phase
Three
Seal Material
EPDM/Silicon Carbide/Stainless Steel
Includes
Manual
Max. Pressure
148 psi
Impeller Type
Closed
Hz
60
Inlet
1-1/4" Flanged
GPM @ 140 PSI
4
Standards
cULus Listed
Mounting Orientation
Vertical
Motor Ambient Temperature (Minimum)
40 Degrees F
Number of Stages
11
Flow Rate @ 60 psi
22 gpm
Compatible with Media Type
Non-Abrasive Liquids, Water
Case Pressure (Maximum)
245 psi
Flow Rate @ 80 psi
19 gpm
Shut Off Pressure (Maximum)
148 psi
Impeller Design
Closed
Motor Ambient Temperature (Maximum)
104 Degrees F
Flow Rate @ 120 psi
12 gpm
Best Efficiency Pressure
104 psi
Flow Rate @ 140 psi
4 gpm
Maximum Media Temperature
248 Degrees F
Flow Rate @ 90 psi
17.5 gpm
Pump Housing Material
Stainless Steel
Flow Rate @ 70 psi
20.5 gpm
Intake Type
Flange
Nameplate Voltage
230/460V AC
Suction Lift (Maximum)
0 ft
Duty Cycle
Continuous
Discharge Type
Flange
Wetted Material
EPDM, Silicon Carbide, Stainless Steel
Flow Rate @ 100 psi
16 gpm
Horsepower
2 hp
Motor Frame Designation
56C
Frequency
60 Hz
Maximum RPM
3,450 RPM
For Use With Potable Systems
No
Pumping Application
City Water Mains, Cooling Water Systems, Irrigation
Installation
Floor Standing
Revolutions Per Minute - Maximum
3,450 RPM
Case Pressure - Maximum
245 psi
Inlet Gender
Female
Full Load Current
5.6/2.8 A
Motor Ambient Temperature - Minimum
40 Degrees F
Pump Casing Material
Stainless Steel
Motor Ambient Temperature - Maximum
104 Degrees F
Media Temperature - Minimum
0 Degrees F
Shut Off Pressure - Maximum
148 psi
Motor Design
Three-Phase
Suction Lift - Maximum
0 ft
Media Temperature - Maximum
248 Degrees F
Inlet Standard
Flange
Best Efficiency Flow
15 gpm
Power Source
Corded Electric
Discharge Standard
Flange
Motor Enclosure Design
Totally Enclosed Fan Cooled

Description

Booster Pump, Phase Three, Pump Housing Material Stainless Steel, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower 2 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 60 psi 22 gpm, Flow Rate @ 70 psi 20.5 gpm, Flow Rate @ 80 psi 19 gpm, Flow Rate @ 90 psi 17.5 gpm, Flow Rate @ 100 psi 16 gpm, Flow Rate @ 120 psi 12 gpm, Shut Off Pressure (Maximum) 148 psi, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 1/4 in, Intake Type Flange, Mounting Orientation Vertical

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
