  5. Booster Pump, 3 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 17 Stage

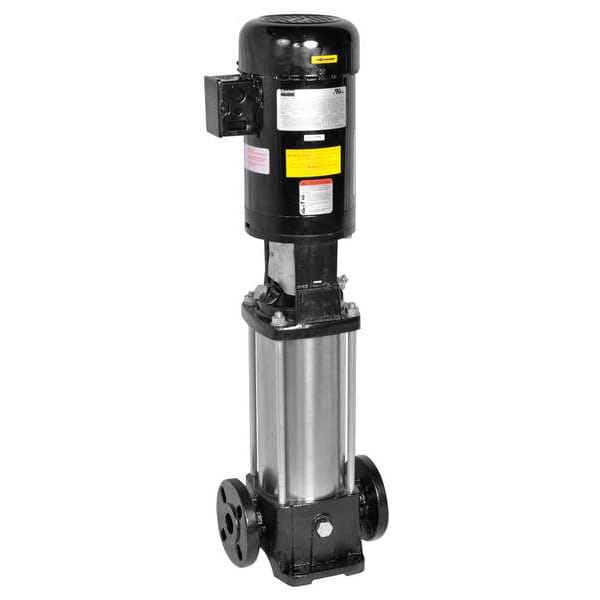

Dayton Booster Pump, 3 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 17 Stage 5UWK0 - main

Booster Pump, 3 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 17 Stage

  • Mfr # 5UWK0

  • Zoro # G1599105

product price:  $1,833.99
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
3 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Inlet Size - Pumps
1-1/4 in Flanged
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5UWK0
Zoro #
G1599105
UPC #
190735352854
Country of Origin
India

Dimensions

Inlet Size - Pumps
1-1/4 in Flanged
Outlet Size - Pumps
1-1/4 in Flanged
Max. Dia. Solids
5/64 in
Width
8 3/4 in
Height
33 5/8 in
Length
9 7/8 in
Manufacturers Warranty Length
1 yr
Overall Width
8.75 in
Overall Length
9.88 in
Overall Height
33.63 in
Manufacturer Warranty Length
1 yr
Intake Size
1 1/4 in
Discharge Flange Size
1 1/4 in
Solid Diameter (Maximum)
0.07 in
Compatible Discharge Pipe Size
1 1/4 in
Compatible Intake Pipe Size
1 1/4 in
Discharge Diameter
1 1/4 in
Inlet Diameter
1 1/4 in
Solids Diameter - Maximum
0.07 in

Details

Booster Pump Type
Multi-Stage Booster Pump
Item
Booster Pump
HP - Pumps
3 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Number of Stages - Pumps
17
Max. Pressure - Pumps
230 psi
Housing Material - Pumps
Cast Iron
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
GPM @ 100 PSI
22
Bearing Type
Ball
Impeller Type
Closed
Impeller Material
Stainless Steel
Max. Liquid Temp.
248 Degrees F
GPM @ 160 PSI
16
Includes
Manual
GPM @ 200 PSI
10
HP
3
Motor Type
3-Phase
Motor Enclosure
Totally Enclosed Fan Cooled (TEFC)
Max. Pressure
230 psi
Frame
56c
Max. Case Pressure
245 psi
Housing Material
Cast iron
GPM @ 180 PSI
13
Outlet
1-1/4" FNPT
Wetted Materials
Cast Iron, EPDM, Silicon Carbide, Stainless Steel
Agency Compliance
c UL us
Duty
Continuous
Amps
7.2/3.6 A
Motor RPM
3,450 RPM
GPM @ 120 PSI
20
Seal Material
EPDM/Silicon Carbide/Stainless Steel
Hz
60
Stages
17
Motor Ambient Temp. Rating
40 Degrees C
Suction Lift
0 ft
GPM @ 140 PSI
18
Phase
Three
Pump Mounting Position
Horizontal
Best Efficiency GPM @ PSI
16 @ 164
Voltage
208-230/460
Inlet
1-1/4" FNPT
Standards
cULus Listed
Best Efficiency Pressure
164 psi
Shut Off Pressure (Maximum)
230 psi
Compatible with Media Type
Non-Abrasive Liquids, Water
Motor Frame Designation
56C
Discharge Type
Flange
Pump Housing Material
Cast Iron
Frequency
60 Hz
Pumping Application
City Water Mains, Cooling Water Systems, Irrigation
Number of Stages
17
For Use With Potable Systems
No
Flow Rate @ 160 psi
16 gpm
Flow Rate @ 180 psi
13 gpm
Nameplate Voltage
230/460V AC
Horsepower
3 hp
Suction Lift (Maximum)
0 ft
Mounting Orientation
Vertical
Maximum RPM
3,450 RPM
Motor Ambient Temperature (Minimum)
40 Degrees F
Flow Rate @ 140 psi
18 gpm
Flow Rate @ 200 psi
10 gpm
Maximum Media Temperature
248 Degrees F
Flow Rate @ 120 psi
20 gpm
Flow Rate @ 100 psi
22 gpm
Motor Ambient Temperature (Maximum)
104 Degrees F
Duty Cycle
Continuous
Intake Type
Flange
Case Pressure (Maximum)
245 psi
Wetted Material
Cast Iron, EPDM, Silicon Carbide, Stainless Steel
Impeller Design
Closed
Pump Casing Material
Cast Iron
Case Pressure - Maximum
245 psi
Inlet Standard
Flange
Revolutions Per Minute - Maximum
3,450 RPM
Power Source
Corded Electric
Motor Ambient Temperature - Minimum
40 Degrees F
Inlet Gender
Female
Full Load Current
7.2/3.6 A
Installation
Floor Standing
Motor Enclosure Design
Totally Enclosed Fan Cooled
Best Efficiency Flow
16 gpm
Media Temperature - Minimum
0 Degrees F
Suction Lift - Maximum
0 ft
Shut Off Pressure - Maximum
230 psi
Motor Design
Three-Phase
Motor Ambient Temperature - Maximum
104 Degrees F
Discharge Standard
Flange
Media Temperature - Maximum
248 Degrees F

Description

Booster Pump, Phase Three, Pump Housing Material Cast Iron, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower 3 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 100 psi 22 gpm, Flow Rate @ 120 psi 20 gpm, Shut Off Pressure (Maximum) 230 psi, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 1/4 in, Intake Type Flange, Mounting Orientation Vertical, For Use With Potable Systems No, Amps 7.2/3.6 A, Best Efficiency Pressure 164 psi, Case Pressure (Maximum) 245 psi

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
