Shop DAYTON

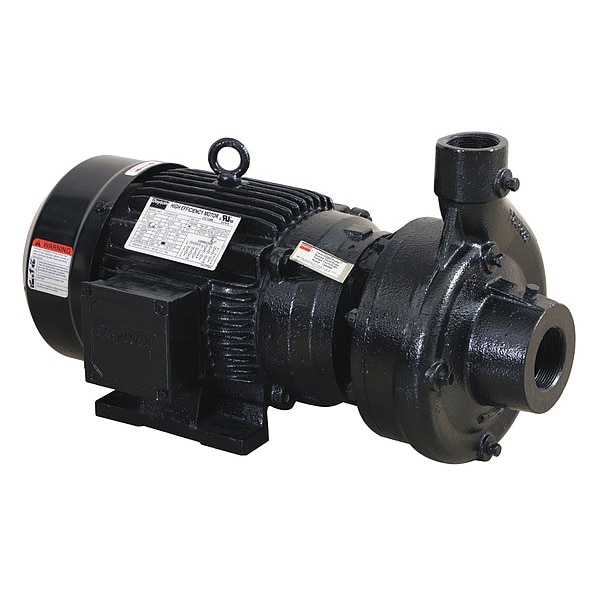

Centrifugal Pump, 3 Ph, 230/460VAC

  • Mfr # 55JJ47

  • Zoro # G3722958

product price:  $1,308.99
/ea
Additional $115.00 delivery surcharge applies per item.
See details

Key Features

HP - Pumps
5 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Cast Iron
Inlet Size - Pumps
2 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
55JJ47
Zoro #
G3722958
UPC #
-
Country of Origin
India

Dimensions

Inlet Size - Pumps
2 in NPT
Outlet Size - Pumps
1-1/2 in NPT
Compatible Discharge Pipe Size
1 1/2 in
Compatible Intake Pipe Size
2 in
Impeller Diameter
132 1/2 mm
Solid Diameter (Maximum)
0.13 in
Overall Length
21.4 in
Shaft Outer Diameter
7/8 in
Manufacturer Warranty Length
1 yr
Overall Height
12.2 in
Discharge Diameter
1 1/2 in
Motor Frame Size
184JM
Overall Width
11.5 in
Inlet Diameter
2 in

Details

HP - Pumps
5 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Cast Iron
Max. Pressure - Pumps
47 psi
Max. Head
105 ft
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Discharge Pump Type
Centrifugal Pump
Motor Enclosure
Totally Enclosed Fan Cooled
Amps
15.4/7.7
Item
Centrifugal Pump
Best Efficiency Range GPM @ Head
123 to 188 gpm @ 90 to 68 ft
Frame
184JM
Phase
Three
Shut Off Pressure (Maximum)
47 psi
Flow Rate @ 50 ft of Head (Maximum)
198 gpm
Flow Rate @ 60 ft of Head (Maximum)
188 gpm
Flow Rate @ 80 ft of Head (Maximum)
145 gpm
Flow Rate @ 40 ft of Head (Maximum)
215 gpm
Flow Rate @ 100 ft of Head (Maximum)
55 gpm
Intake Type
NPT
Flow Rate @ 70 ft of Head (Maximum)
162 gpm
Discharge Type
NPT
Pump Housing Material
Cast Iron
Best Efficiency Head
90 ft
Maximum Feet of Head
100 ft
Best Efficiency Flow
188 gpm
Horsepower
5 hp
For Use With Potable Systems
No
Flow Rate @ 90 ft of Head (Maximum)
120 gpm
Nameplate Voltage
230/460V AC
Discharge Orientation
Top
Specific Gravity (Maximum)
1
Feet of Head (Maximum)
100 ft
Electrical Connection Type
Hardwired
Drive Coupling Type
No Coupling
Bearing Type
Ball
Flow Rate (Minimum)
55 gpm
Frequency
60 Hz
Pumping Application
Chemical Transfer, Decorative Water, Dewatering, Irrigation, Liquid Transfer
Shaft Material
Stainless Steel
Standards
UL Recognized Motor
Flow Rate (Maximum)
215 gpm
Priming
Manual
Hazardous Location Class
Not Rated
Number of Stages
1
Full Load Current
12.6/6.3 A
Shut Off Pressure - Maximum
47 psi
Feet of Head (Minimum)
40 ft
Thermal Overload Protection
Yes
Inlet Position
Center
Service Factor
1.25
Shaft Seal Material
Buna-N/Carbon/Ceramic
Volute Material
Cast Iron
Motor Speed - Maximum
3,450 RPM
Shaft Seal Type
Mechanical
Motor Design
Three-Phase
Impeller Material
Bronze
Inlet Orientation
Side
Case Pressure - Maximum
100 psi
Chemical Compatibility
Non-Flammable Liquids
Viscosity (Maximum)
100 SUS
Media Temperature - Minimum
40 Degrees F
Media Temperature - Maximum
180 Degrees F
Ambient Temperature - Maximum
40 Degrees C
Discharge Rotation Increments
0 Degrees
Duty Cycle
Continuous
Mounting Orientation
Horizontal
Discharge Position
Center
Wetted Material
Bronze, Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
Includes
Manual

Description

Centrifugal Pump, Phase Three, Pump Housing Material Cast Iron, Horsepower 5 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 215 gpm, Flow Rate @ 60 ft of Head (Maximum) 188 gpm, Flow Rate @ 80 ft of Head (Maximum) 145 gpm, Maximum Feet of Head 100 ft, Compatible Intake Pipe Size 2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/2 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Flow Rate @ 50 ft of Head (Maximum) 198 gpm

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
