  6. Capacitor-Start Belt Drive Motor, 3/4 HP, 56 Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM

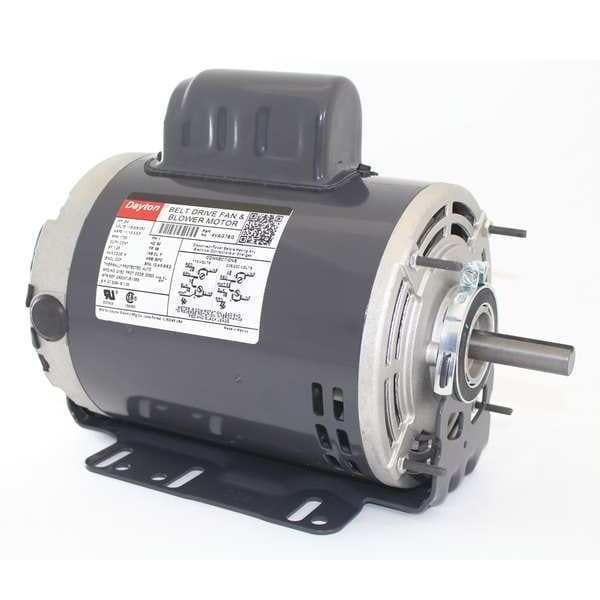

Dayton Capacitor-Start Belt Drive Motor, 3/4 HP, 56 Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM 4VAG7 - main

Capacitor-Start Belt Drive Motor, 3/4 HP, 56 Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM

  • Mfr # 4VAG7

  • Zoro # G0824144

product price:  $466.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
3/4
No. of Speeds
1
RPM Range
1,701-1,800
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4VAG7
Zoro #
G0824144
UPC #
190735335802
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Length Less Shaft
9 7/8 in
Body Dia.
6 1/2 in
Shaft Length
1 7/8 in
Resilient Ring Dia.
2 1/2 in
Overall Length
11 13/16 in

Details

Item
Belt Drive Motor
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
3/4
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115/208-230V AC
Frame
56
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.25
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Frame Material
Steel
Footnotes
Usable On 208V At 1.0 Service Factor
Mounting Stud Pattern
4-1/4 in x 4-1/4 in
Motor Shaft Design
Keyed
Motor Mounting Position
All Angle
Standards
CSA Certified (225293), UL Recognized (E47479)
Full Load Amps
11.1/5.5-5.5 A
Ins. Class
F
Hz
60 Hz
Ring to Ring Center
9 7/16 in
Motor Shaft Rotation
CW/CCW
Duty
Continuous
Max. Ambient Temp.
140 Degrees F
Motor Bearings
Ball
Motor Frame Material
Rolled Steel
Nominal Efficiency
72 %
Duty Cycle
Continuous

Description

Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 11.1/5.5-5.5 A Full Load Amps, 56 Frame, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 60 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Steel
