Shop CENTURY

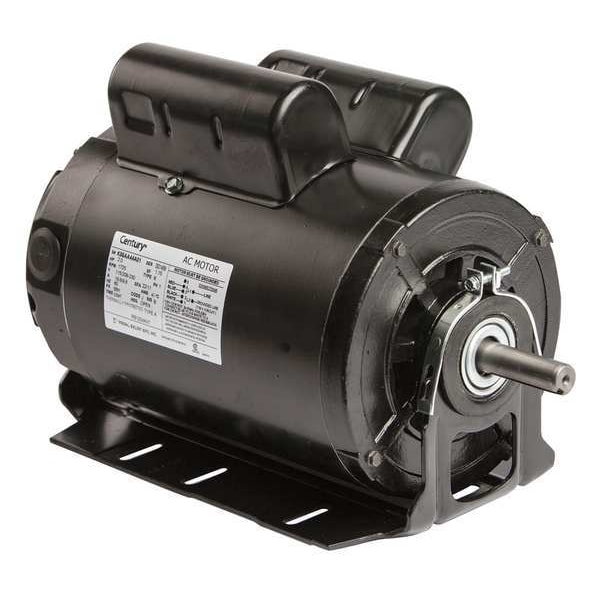

Capacitor-Start Belt Drive Motor, 2 HP, 56H Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM

  • Mfr # RB1204AV1
  • Zoro # G0688125
product price:
$
693.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
2
No. of Speeds
1
RPM Range
1,701-1,800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RB1204AV1
Zoro #
G0688125
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Body Dia.
6 5/8 in
Resilient Ring Dia.
2 1/2 in
Shaft Length
2 in
Overall Length
12 13/16 in
Length Less Shaft
10 13/16 in
Frame Size
56H
Body Diameter
6.6 in
Shaft Diameter
5/8 in
Resilient Ring Diameter
2 1/2 in

Details

Item
Belt Drive Motor
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
2
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115V AC, 208V AC to 230V AC
Frame
56H
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.15
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 208V AC to 230V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Hz
60 Hz
Full Load Amps
19.6/9.8 A
Motor Frame Material
Steel
Ring to Ring Center
10 1/2 in
Mounting Stud Pattern
4 1/8 in x 4 1/8 in
Motor Mounting Position
Horizontal
Motor Bearings
Ball
Max. Ambient Temp.
104 Degrees F
Ins. Class
B
Standards
CSA
Motor Shaft Rotation
CW/CCW
Duty
Continuous
Frame Material
Steel
Duty Cycle
Continuous
Weight
43 lb
Usable @ 200V
No
Usable @ 208V
Yes
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Open
Bearing Type
Ball
Drive Type
Belt Drive
Full Load Current @ 60 Hz
19.6/9.8 A
Ambient Temperature - Maximum
40 Degrees C
Product Type
Fan and Blower Motor
Insulation Class
B
Application
Fan/Blower
Mounting Position
All Angle
Number of Speeds
1

Description

Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 19.6/9.8 A Full Load Amps, 56H Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open, Motor Mounting Type Cradle Base, Motor Frame Material Steel
