Shop DAYTON

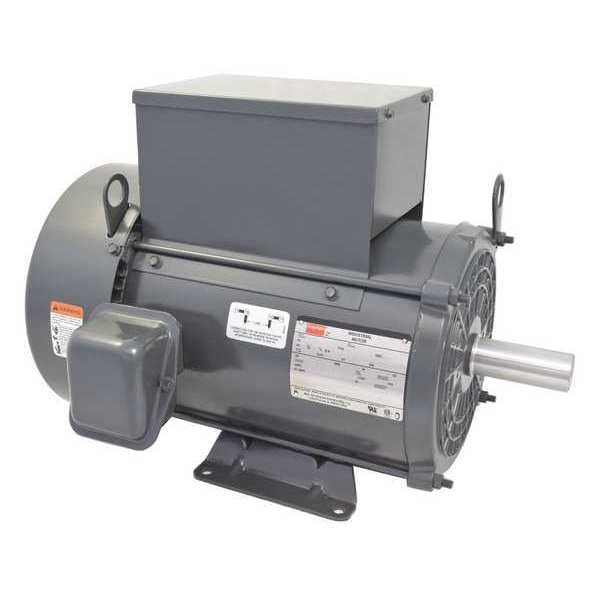

Capacitor-Start/Run General Purpose Motor, 7 1/2 hp HP, 230V AC Voltage, 213T Frame

  • Mfr # 6K179BG

  • Zoro # G2558351

product price:
$
2,348.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
7 1/2 hp
RPM Range
3,001-3,600
Voltage
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6K179BG
Zoro #
G2558351
UPC #
190735365526
Country of Origin
Multiple

Dimensions

Overall Length
20 in
Length Less Shaft
16 1/2 in
Shaft Dia.
1 3/8 in
Shaft Length
3 1/2 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1 3/8 in
Frame Size
213T
Wire Rope Length
20 in
Length
20 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
7 1/2 hp
RPM Range
3,001-3,600
Voltage
230V AC
Frame
213T
Motor Thermal Protection
None
Motor Service Factor
1
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC
Motor Application
General Purpose
Nameplate RPM
3,530 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CSA Certified (258501), UL Recognized (E47479)
Footnotes
24, 51
Ins. Class
F
Frame Material
Steel
Full Load Amps
30.3 A
Duty
Continuous
Hz
60 Hz
RPM Group
3001-3600
Nominal Efficiency
83.5 %
Max. Ambient Temp.
40 Degrees C
Includes
Conduit Box, Shaft Key
Motor Bearings
Ball
Motor Efficiency Group
Energy Efficient
Phase
Single
Duty Cycle
Continuous
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
All Angle
Full Load Current @ 60 Hz
30.3 A
Frequency
60 Hz
Shaft Design
Keyed
Motor Enclosure Type
Totally Enclosed Fan Cooled
Bearing Type
Ball
Product Type
General Purpose Motor
Nameplate Service Factor @ 60 Hz
1
Number of Speeds
1
Manufacturers Warranty
1 yr
Efficiency Rating
High Efficiency (IE2)
Application
General Purpose
Insulation Class
F

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 7 1/2 hp HP, Nameplate RPM 3,530 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 30.3 A, 213T Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
