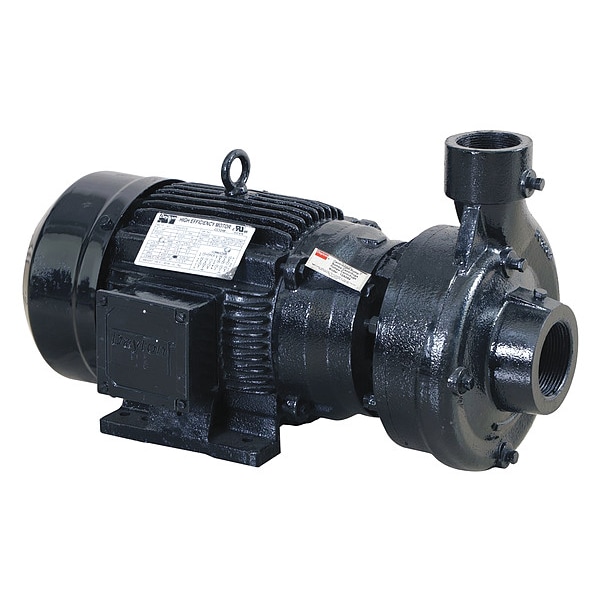

Centrifugal Pump, 3 Ph, 230/460VAC

  • Mfr # 55JJ51

  • Zoro # G3723405

product price:  $1,090.99
/ea
Additional $155.00 delivery surcharge applies per item.
See details

Key Features

HP - Pumps
5 hp
Voltage - Pumps
208 to 230/460V AC
Phase - Pumps
3
Housing Material - Pumps
Cast Iron
Inlet Size - Pumps
2-1/2 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
55JJ51
Zoro #
G3723405
UPC #
-
Country of Origin
India

Dimensions

Inlet Size - Pumps
2-1/2 in NPT
Outlet Size - Pumps
2 in NPT
Compatible Intake Pipe Size
2 1/2 in
Compatible Discharge Pipe Size
2 in
Manufacturer Warranty Length
1 yr
Overall Width
11.5 in
Impeller Diameter
132 mm
Discharge Diameter
2 in
Overall Height
12.2 in
Motor Frame Size
184JM
Solid Diameter (Maximum)
0.13 in
Overall Length
20.8 in
Inlet Diameter
2 1/2 in
Shaft Outer Diameter
7/8 in

Details

HP - Pumps
5 hp
Voltage - Pumps
208 to 230/460V AC
Phase - Pumps
3
Housing Material - Pumps
Cast Iron
Max. Pressure - Pumps
47 psi
Max. Head
105 ft
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Phase
Three
Motor Enclosure
Totally Enclosed Fan Cooled
Discharge Pump Type
Centrifugal Pump
Amps
15.4/7.7
Item
Centrifugal Pump
Best Efficiency Range GPM @ Head
123 to 188 gpm @ 90 to 68 ft
Frame
184JM
Intake Type
NPT
For Use With Potable Systems
No
Discharge Type
NPT
Best Efficiency Flow
188 gpm
Maximum Feet of Head
100 ft
Flow Rate @ 50 ft of Head (Maximum)
198 gpm
Flow Rate @ 40 ft of Head (Maximum)
215 gpm
Flow Rate @ 70 ft of Head (Maximum)
162 gpm
Shut Off Pressure (Maximum)
47 psi
Best Efficiency Head
90 ft
Flow Rate @ 60 ft of Head (Maximum)
188 gpm
Nameplate Voltage
230/460V AC
Pump Housing Material
Cast Iron
Flow Rate @ 90 ft of Head (Maximum)
120 gpm
Horsepower
5 hp
Flow Rate @ 80 ft of Head (Maximum)
145 gpm
Flow Rate @ 100 ft of Head (Maximum)
55 gpm
Motor Speed - Maximum
3,450 RPM
Discharge Rotation Increments
0 Degrees
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Duty Cycle
Continuous
Electrical Connection Type
Hardwired
Discharge Position
Center
Specific Gravity (Maximum)
1
Thermal Overload Protection
Yes
Chemical Compatibility
Non-Flammable Liquids
Bearing Type
Ball
Wetted Material
Bronze, Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
Motor Design
Three-Phase
Inlet Position
Center
Shaft Seal Type
Mechanical
Service Factor
1.25
Hazardous Location Class
Not Rated
Pumping Application
Chemical Transfer, Decorative Water, Dewatering, Irrigation, Liquid Transfer
Shaft Material
Stainless Steel
Shut Off Pressure - Maximum
47 psi
Discharge Orientation
Top
Volute Material
Cast Iron
Full Load Current
12.6/6.3 A
Media Temperature - Minimum
40 Degrees F
Feet of Head (Maximum)
100 ft
Viscosity (Maximum)
100 SUS
Shaft Seal Material
Buna-N/Carbon/Ceramic
Flow Rate (Minimum)
55 gpm
Number of Stages
1
Inlet Orientation
Side
Impeller Material
Bronze
Drive Coupling Type
No Coupling
Standards
UL Recognized Motor
Priming
Manual
Includes
Manual
Media Temperature - Maximum
180 Degrees F
Case Pressure - Maximum
100 psi
Mounting Orientation
Horizontal
Flow Rate (Maximum)
215 gpm
Feet of Head (Minimum)
40 ft

Description

Centrifugal Pump, Phase Three, Pump Housing Material Cast Iron, Horsepower 5 hp, Nameplate Voltage 208-240/480V AC, Flow Rate @ 40 ft of Head (Maximum) 215 gpm, Flow Rate @ 60 ft of Head (Maximum) 188 gpm, Flow Rate @ 80 ft of Head (Maximum) 145 gpm, Maximum Feet of Head 100 ft, Compatible Intake Pipe Size 2 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 2 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Flow Rate @ 50 ft of Head (Maximum) 198 gpm
