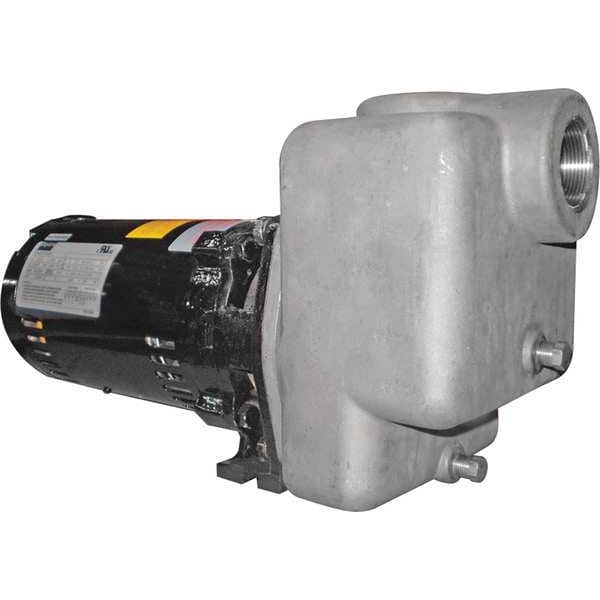

Centrifugal Pump, 3/4 hp, 208 to 230/460V AC, 3 Phase, 82 ft Max Head

  • Mfr # 5GUP1

  • Zoro # G0381351

product price:  $1,300.99
/ea
Free Shipping & Returns

Key Features

Item - Self Priming Pumps
Self Priming Centrifugal Pump
Inlet
1-1/2 in NPT
HP - Pumps
3/4 hp
Outlet
1-1/2 in NPT
Voltage - Pumps
208 to 230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5GUP1
Zoro #
G0381351
UPC #
190735344057
Country of Origin
India

Dimensions

Outlet Size - Pumps
1-1/2 in NPT
Max. Dia. Solids - Pumps
1/8 in
Inlet Size - Pumps
1-1/2 in NPT
Length
16 7/8 in
Max. Dia. Solids
1/8"
Manufacturers Warranty Length
1 yr
Height
9 1/8 in
Width
6 7/8 in
Overall Height
9.1 in
Overall Length
16.8 in
Compatible Intake Pipe Size
1 1/2 in
Overall Width
6.8 in
Solid Diameter (Maximum)
0.13 in
Compatible Discharge Pipe Size
1 1/2 in
Shaft Outer Diameter
5/8 in
Inlet Diameter
1 1/2 in
Manufacturer Warranty Length
1 yr
Motor Frame Size
56J
Discharge Diameter
1 1/2 in
Impeller Diameter
4 11/16 in
Wire Rope Length
16.8 in

Details

Item
Centrifugal Pump
Item - Self Priming Pumps
Self Priming Centrifugal Pump
Inlet
1-1/2 in NPT
HP - Pumps
3/4 hp
Outlet
1-1/2 in NPT
Voltage - Pumps
208 to 230/460V AC
HP
3/4
Wetted Materials
Carbon, Ceramic, Stainless Steel, Viton
Phase - Pumps
3
Voltage
208-230/460
Max. Head - Pumps
82 ft
Volute Material
316 Stainless Steel
Best Efficiency Range GPM @ Head
38 to 55 gpm @ 63 to 49 ft
Seal Material
Carbon, Ceramic, Viton
Suction Lift
20 ft.
Motor Enclosure - Pumps
Open Dripproof
Max. Pressure - Pumps
35 psi
Motor RPM
3,450 RPM
Housing Material - Pumps
316 Stainless Steel
Phase
Three
Housing Material
Stainless steel
GPM of Water @ 40 Ft. of Head
61
Motor Design
Three-Phase
Includes
Manual
Port Rotation
No
Duty - Pumps
Continuous
Duty
Continuous
GPM of Water @ 30 Ft. of Head
62
GPM of Water @ 10 Ft. of Head
66
Agency Compliance
c UL us
GPM of Water @ 15 Ft. of Head
65
Port Rotation - Pumps
No
Self-Priming
Yes
Max. Case Pressure
165 psi
Inlet Pressure
100 psi
Impeller Material
Stainless Steel
GPM of Water @ 20 Ft. of Head
64
Hz
60
GPM of Water @ 50 Ft. of Head
57
Max. Liquid Temp.
200 Degrees F
Amps
2.7-2.5/1.2
Motor Enclosure
Open Drip Proof
Motor Type
3-Phase
Max. Temp - Pumps
200 Degrees F
Suction Lift - Pumps
20 ft
Frame
56J
Max. Head
82 ft.
Max. Pressure
35.4 psi
Max. Specific Gravity
1.0
Bearing Type
Ball
Impeller Type
Semi Open
Seal Type
Mechanical
Shaft Material
Stainless Steel
Compatible with Media Type
Non-Flammable Liquids
Discharge Type
NPT
Intake Type
NPT
Specific Gravity (Maximum)
1
Best Efficiency Head
63 ft
Flow Rate @ 70 ft of Head (Maximum)
14 gpm
Flow Rate @ 50 ft of Head (Maximum)
40 gpm
Priming
Self-Priming
Best Efficiency Flow
55 gpm
Impeller Design
Semi-Open
Maximum Feet of Head
82 ft
Horsepower
3/4 hp
Flow Rate @ 20 ft of Head (Maximum)
64 gpm
Flow Rate @ 60 ft of Head (Maximum)
30 gpm
Flow Rate @ 40 ft of Head (Maximum)
48 gpm
Pumping Application
Chemical Transfer, Decorative Water, Dewatering, Irrigation, Liquid Transfer
Motor Frame Designation
56J
Wetted Material
Carbon, Ceramic, Stainless Steel, Viton
Shut Off Pressure (Maximum)
35 psi
Nameplate Voltage
230/460V AC
Maximum Flow Rate
66 gpm
Duty Cycle
Continuous
Minimum Flow Rate
6 gpm
Standards
UL Recognized Motor
Feet of Head (Minimum)
10 ft
Suction Lift (Maximum)
20 ft
Flow Rate @ 10 ft of Head (Maximum)
66 gpm
For Use With Potable Systems
No
Frequency
60 Hz
Maximum RPM
3,500 RPM
Flow Rate @ 15 ft of Head (Maximum)
65 gpm
Flow Rate @ 80 ft of Head (Maximum)
6 gpm
Flow Rate @ 30 ft of Head (Maximum)
57 gpm
Minimum Media Temperature
40 Degrees F
Pump Housing Material
Stainless Steel
Thermal Overload Protection
Yes
Mounting Orientation
Horizontal
Discharge Rotation Increments
0 Degrees
Media Temperature - Minimum
40 Degrees F
Discharge Position
Center
Flow Rate (Maximum)
66 gpm
Ambient Temperature - Maximum
40 Degrees C
Motor Speed - Maximum
3,450 RPM
Full Load Current
2.5/1.2 A
Inlet Position
Center
Inlet Orientation
Side
Discharge Orientation
Top
Feet of Head (Maximum)
82 ft
Drive Coupling Type
No Coupling
Viscosity (Maximum)
100 SUS
Chemical Compatibility
Non-Flammable Liquids
Flow Rate (Minimum)
6 gpm
Media Temperature - Maximum
200 Degrees F
Number of Stages
1
Shaft Seal Type
Mechanical
Suction Lift - Maximum
20 ft
Shaft Seal Material
Carbon/Ceramic, FKM
Case Pressure - Maximum
100 psi
Hazardous Location Class
Not Rated
Shut Off Pressure - Maximum
35 psi
Flow Rate @ 10 ft of Head - Maximum
66 gpm
Electrical Connection Type
Hardwired

Description

Centrifugal Pump, Phase Three, Pump Housing Material Stainless Steel, Horsepower 3/4 hp, Nameplate Voltage 208-230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 61 gpm, Flow Rate @ 60 ft of Head (Maximum) 41 gpm, Flow Rate @ 80 ft of Head (Maximum) 6 gpm, Maximum Feet of Head 82 ft, Compatible Intake Pipe Size 1 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/2 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Maximum Flow Rate 66 gpm, Flow Rate @ 10 ft of Head (Maximum) 66 gpm
