Shop DAYTON

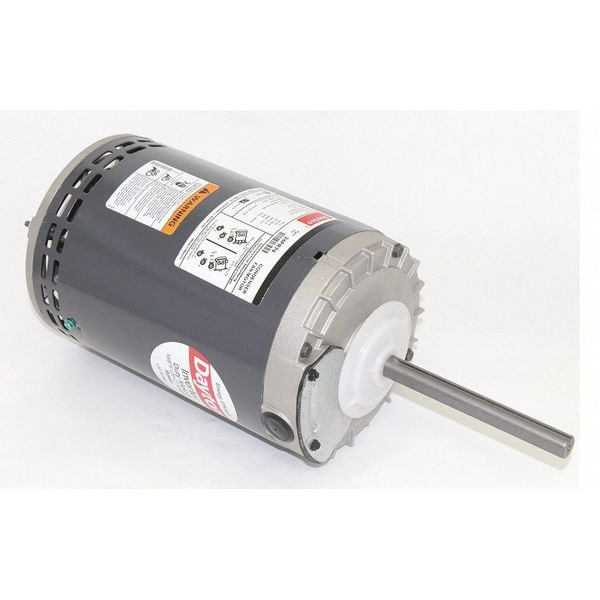

Condenser Fan Motor, 1 1/2 hp

  • Mfr # 24PR74

  • Zoro # G5358071

product price:
$
782.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1 1/2
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
24PR74
Zoro #
G5358071
UPC #
190735194294
Country of Origin
Mexico
Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1 1/2
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
208-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
56YZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Band
Motor Mounting Position
Vertical Shaft Up
Motor Thermal Protection
T-Stat
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Service Factor
1
Ins. Class
F
Application
Commercial Air Conditioners
Motor Bearings
Ball
Nominal Efficiency
84 %
Hz
60 Hz
Features
Inverter Duty Windings
Standards
CSA 258525, UL E47479
Duty
Continuous
Motor Shaft Design
Flat
Full Load Amps
5.3-5.3/2.6 A
Duty Cycle
Continuous
Inverter Rated
Yes
Mounting
Band
Full Load Current @ 60 Hz
5.3-5.3/2.6 A
Nameplate Service Factor @ 60 Hz
1
Number of Speeds
1
Frequency
60 Hz
Bearing Type
Ball
Sub Application
Condenser Fan
Shaft Design
Flat
Inverter Rating
Inverter Rated
Product Type
Condenser Fan Motor
Insulation Class
F
Mounting Position
Vertical Shaft Up
Drive Type
Direct Drive
Ambient Temperature - Maximum
70 Degrees C
Motor Enclosure Type
Open Air Over

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 5.3-5.3/2.6 A Full Load Amps, 56YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band, Inverter Rated Inverter Rated, Inverter Rating Inverter Rated
