Shop DAYTON

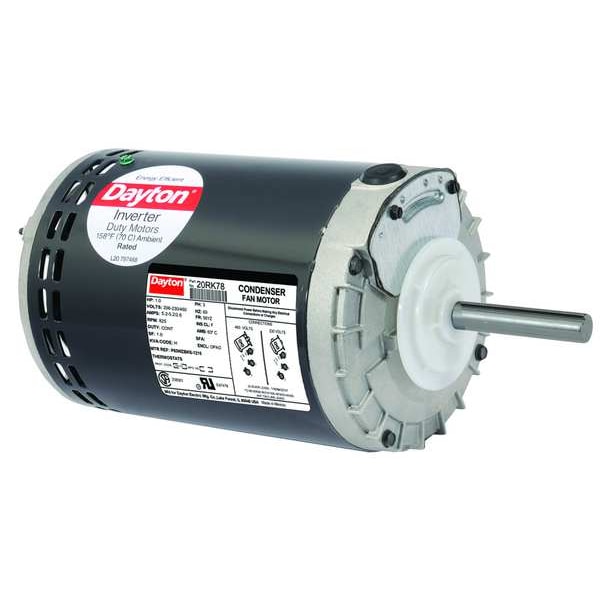

Condenser Fan Motor, 1 hp

  • Mfr # 20RK78
  • Zoro # G7583651
product price:
$
909.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
0-1,000
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
20RK78
Zoro #
G7583651
UPC #
190735153901
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
3 in
Overall Length
15 3/4 in
Length Less Shaft
10 1/4 in
Body Dia.
6 1/2 in
Lead Length
6 in
Shaft Diameter
5/8 in
Body Diameter
6.5 in
Frame Size
56YZ
Wire Rope Length
15 3/4 in
Length
15 3/4 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
0-1,000
No. of Speeds
1
Voltage
208V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
56YZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Band
Motor Mounting Position
Vertical Shaft Up
Motor Thermal Protection
T-Stat
Max. Ambient Temp.
60 Degrees C
Nameplate RPM
825
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Motor Bearings
Ball
Hz
60 Hz
Duty
Continuous
Standards
CSA 191252, UL E47479
Features
Inverter Duty Windings
Motor Shaft Design
Flat
Nominal Efficiency
73 %
Application
Commercial Air Conditioners
Ins. Class
F
Full Load Amps
5.2-5.2/2.6 A
Motor Service Factor
1
Duty Cycle
Continuous
Bearing Protection
Shaft Grounding Rings
Inverter Rated
Yes
Mounting
Band
Motor Enclosure Type
Open Air Over
Mounting Position
Vertical Shaft Up
Sub Application
Condenser Fan
Insulation Class
F
Full Load Current @ 60 Hz
5.2-5.2/2.6 A
Inverter Rating
Inverter Rated
Product Type
Condenser Fan Motor
Drive Type
Direct Drive
Frequency
60 Hz
Ambient Temperature - Maximum
60 Degrees C
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball
Shaft Design
Flat

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 5.2-5.2/2.6 A Full Load Amps, 56YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band, Inverter Rated Inverter Rated, Inverter Rating Inverter Rated
