Shop DAYTON

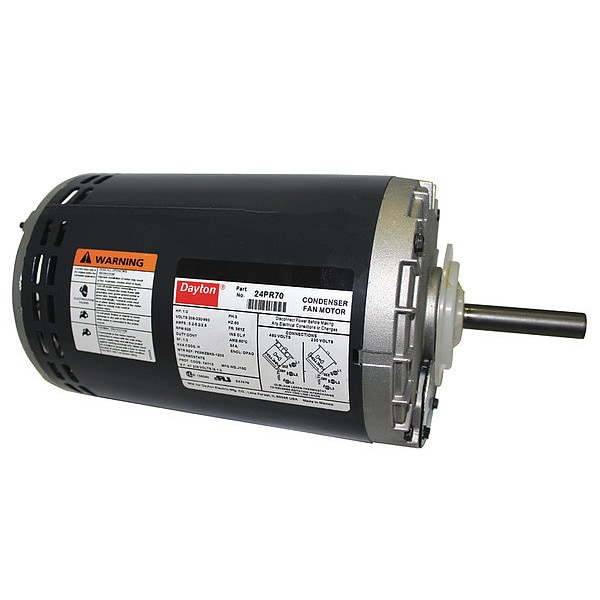

Condenser Fan Motor, 1 hp

  • Mfr # 24PR70
  • Zoro # G5358053
product price:
$
759.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
0-1,000
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
24PR70
Zoro #
G5358053
UPC #
190735194256
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
3 in
Overall Length
15 3/4 in
Lead Length
6 in
Body Dia.
6 1/2 in
Length Less Shaft
10 1/4 in
Body Diameter
6.5 in
Shaft Diameter
5/8 in
Frame Size
56YZ
Wire Rope Length
15 3/4 in
Length
15 3/4 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
0-1,000
No. of Speeds
1
Voltage
208V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
56YZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Band
Motor Mounting Position
Vertical Shaft Up
Motor Thermal Protection
T-Stat
Max. Ambient Temp.
60 Degrees C
Nameplate RPM
825
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Application
Commercial Air Conditioners
Ins. Class
F
Features
Inverter Duty Windings
Motor Service Factor
1
Standards
CSA 258525, UL E47479
Duty
Continuous
Hz
60 Hz
Motor Shaft Design
Flat
Nominal Efficiency
73 %
Motor Bearings
Ball
Full Load Amps
5.2-5.2/2.6 A
Duty Cycle
Continuous
Inverter Rated
Yes
Mounting
Band
Frequency
60 Hz
Mounting Position
Vertical Shaft Up
Drive Type
Direct Drive
Number of Speeds
1
Shaft Design
Flat
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
5.2-5.2/2.6 A
Sub Application
Condenser Fan
Product Type
Condenser Fan Motor
Ambient Temperature - Maximum
60 Degrees C
Inverter Rating
Inverter Rated
Insulation Class
F
Bearing Type
Ball
Motor Enclosure Type
Open Air Over

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 5.2-5.2/2.6 A Full Load Amps, 56YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band, Inverter Rated Inverter Rated, Inverter Rating Inverter Rated
