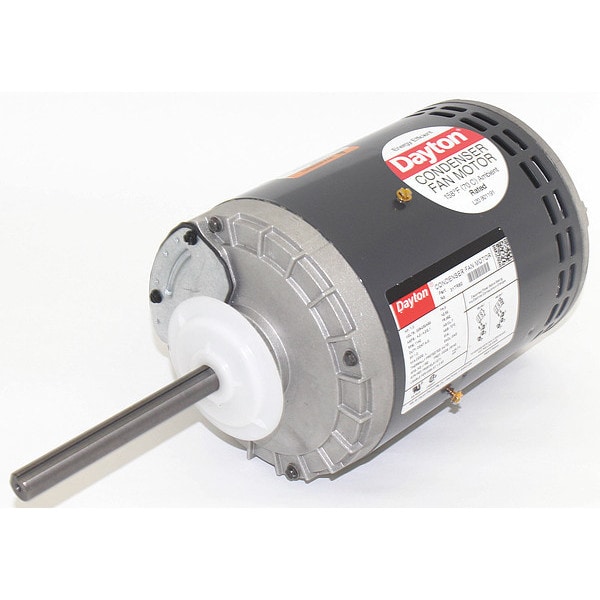

Condenser Fan Motor, 1 hp

Mfr # 31TR60
Zoro # G8571141

620.99

Free Shipping & Returns

Key Features

Motor Design

Three-Phase

Phase

Three

RPM Range

1,101-1,200

No. of Speeds

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 31TR60
Zoro #: G8571141
UPC #: 190735255667
Country of Origin: Mexico

Dimensions

Shaft Dia.: 5/8 in
Shaft Length: 6 in
Lead Length: 6 in
Overall Length: 15 3/4 in
Bolt Circle Dia.: 5 7/8 in
Body Dia.: 6 1/2 in
Length Less Shaft: 9 3/4 in
Stud Size: #10-32
Shaft Diameter: 5/8 in
Bolt Circle Diameter: 5 7/8 in
Frame Size: 56Z
Body Diameter: 6.5 in
Mounting Stud Thread Size: #10-32
Wire Rope Length: 15 3/4 in
Length: 15 3/4 in

Details

Item: Condenser Fan Motor
Motor Design: Three-Phase
Phase: Three
HP: 1
RPM Range: 1,101-1,200
No. of Speeds: 1
Voltage: 208-230/460V AC
Motor Shaft Rotation: CW/CCW
Frame: 56Z
Motor Enclosure Design: Open Air-Over
Motor Mounting Type: Band
Motor Mounting Position: Horizontal or Vertical Shaft Up
Motor Thermal Protection: Auto
Max. Ambient Temp.: 70 Degrees C
Nameplate RPM: 1,140
Motor Application: HVAC/R
Motor Sub Application: Condenser Fan
Voltage Compatibility: 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Bearings: Ball
Capacitor Required: Capacitor Not Required
Ins. Class: F
Features: Inverter Duty, Quick Disconnect Design
Motor Service Factor: 1
Standards: CSA 258525, UL E47479
Application: Condenser Fan
Stud Quantity: 4
Motor Shaft Design: Flat
Mounting Stud Pattern: 4 1/8 in x 4 1/8 in
Nominal Efficiency: 83.4 %
Hz: 60 Hz
Full Load Amps: 4.2-4.2/2.1 A
Duty: Continuous
Duty Cycle: Continuous
Inverter Rated: Yes
Mounting: Band
Mounting Position: Horizontal/Vertical Shaft Up
Product Type: Condenser Fan Motor
Sub Application: Condenser Fan
Drive Type: Direct Drive
Nameplate Service Factor @ 60 Hz: 1
Inverter Rating: Inverter Rated
Shaft Design: Flat
Number of Speeds: 1
Frequency: 60 Hz
Motor Enclosure Type: Open Air Over
Bearing Type: Ball
Full Load Current @ 60 Hz: 4.2-4.2/2.1 A
Insulation Class: F
Ambient Temperature - Maximum: 70 Degrees C

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 4.2-4.2/2.1 A Full Load Amps, 56Z Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band, Inverter Rated Inverter Rated, Inverter Rating Inverter Rated
