Shop DAYTON

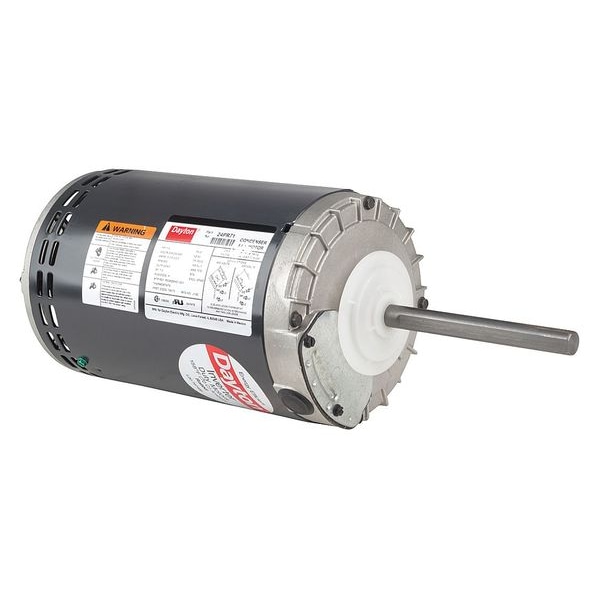

Condenser Fan Motor, 1 hp

  • Mfr # 24PR71

  • Zoro # G5358105

product price:
$
909.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
0-1,000
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
24PR71
Zoro #
G5358105
UPC #
190735194263
Country of Origin
Mexico
Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
0-1,000
No. of Speeds
1
Voltage
208-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
56YZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Band
Motor Mounting Position
Vertical Shaft Up
Motor Thermal Protection
T-Stat
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
850
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Nominal Efficiency
77 %
Duty
Continuous
Standards
CSA 258525, UL E47479
Ins. Class
F
Motor Bearings
Ball
Motor Shaft Design
Flat
Features
Inverter Duty Windings
Motor Service Factor
1
Application
Commercial Air Conditioners
Full Load Amps
5.0-5.0/2.5 A
Hz
60 Hz
Inverter Rated
Yes
Duty Cycle
Continuous
Mounting
Band
Motor Enclosure Type
Open Air Over
Sub Application
Condenser Fan
Bearing Type
Ball
Shaft Design
Flat
Frequency
60 Hz
Product Type
Condenser Fan Motor
Nameplate Service Factor @ 60 Hz
1
Number of Speeds
1
Mounting Position
Vertical Shaft Up
Drive Type
Direct Drive
Ambient Temperature - Maximum
70 Degrees C
Full Load Current @ 60 Hz
5.0-5.0/2.5 A
Insulation Class
F
Inverter Rating
Inverter Rated

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 5.0-5.0/2.5 A Full Load Amps, 56YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band, Inverter Rated Inverter Rated, Inverter Rating Inverter Rated
