Shop DAYTON

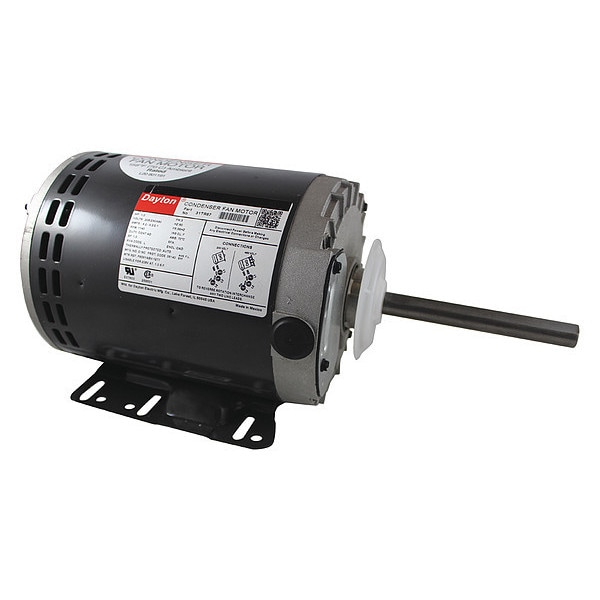

Condenser Fan Motor, 1 hp

  • Mfr # 31TR67

  • Zoro # G8571211

product price:
$
647.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
31TR67
Zoro #
G8571211
UPC #
190735255735
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
6 in
Length Less Shaft
9 3/4 in
Bolt Circle Dia.
5 7/8 in
Stud Size
#10-32
Lead Length
6 in
Body Dia.
6 1/2 in
Overall Length
15 3/4 in
Shaft Diameter
5/8 in
Mounting Stud Thread Size
#10-32
Bolt Circle Diameter
5 7/8 in
Frame Size
56Z
Body Diameter
6.5 in
Wire Rope Length
15 3/4 in
Length
15 3/4 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
208-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
56Z
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Rigid Base
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Application
Condenser Fan
Stud Quantity
4
Motor Bearings
Ball
Features
Inverter Duty
Full Load Amps
4.2-4.2/2.1 A
Standards
CSA 258525, UL E47479
Capacitor Required
Capacitor Not Required
Hz
60 Hz
Duty
Continuous
Motor Shaft Design
Flat
Motor Service Factor
1
Nominal Efficiency
83.4 %
Mounting Stud Pattern
4 1/8 in x 4 1/8 in
Ins. Class
F
Duty Cycle
Continuous
Inverter Rated
Yes
Mounting
Rigid Base
Mounting Position
Horizontal/Vertical Shaft Up
Motor Enclosure Type
Open Air Over
Number of Speeds
1
Sub Application
Condenser Fan
Insulation Class
F
Product Type
Condenser Fan Motor
Shaft Design
Flat
Inverter Rating
Inverter Rated
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Drive Type
Direct Drive
Ambient Temperature - Maximum
70 Degrees C
Frequency
60 Hz
Full Load Current @ 60 Hz
4.2-4.2/2.1 A

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 4.2-4.2/2.1 A Full Load Amps, 56Z Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base, Inverter Rated Inverter Rated, Inverter Rating Inverter Rated
