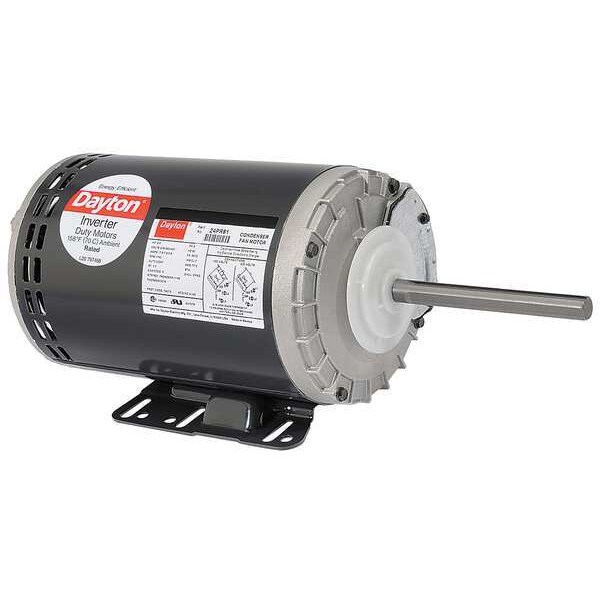

Condenser Fan Motor, 1 1/2 hp
Mfr # 20RK86
Zoro # G7583082
product price:Â $1,244.99
/ea
Free Shipping & Returns
Key Features
Motor Design
3-Phase
Phase
Three
HP
1-1/2
RPM Range
0-1,000
No. of Speeds
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
20RK86
Zoro #
G7583082
UPC #
190735153987
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/8 in
Shaft Length
3 1/8 in
Length Less Shaft
12 1/4 in
Overall Length
15 3/4 in
Body Dia.
6 1/2 in
Lead Length
6 in
Description
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 7.2-7.2/3.6 A Full Load Amps, 56YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base, Motor Mounting Position Vertical Shaft Up, Shaft Length 3 1/8 in, Lead Length 6 in
