  9. Constant Pressure Booster Pump, 3/4 hp, 115V AC, 1 Phase, 1 in NPT Inlet Size, 2 Stage

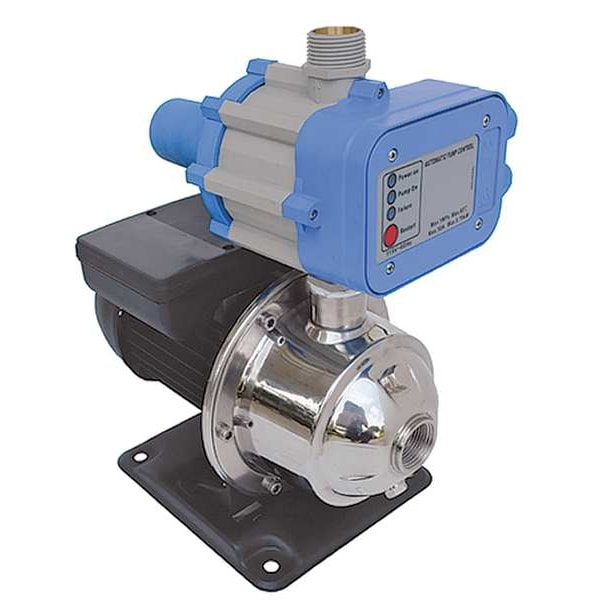

Dayton Constant Pressure Booster Pump, 3/4 hp, 115V AC, 1 Phase, 1 in NPT Inlet Size, 2 Stage 4HFA7 - main

Constant Pressure Booster Pump, 3/4 hp, 115V AC, 1 Phase, 1 in NPT Inlet Size, 2 Stage

  • Mfr # 4HFA7

  • Zoro # G2273327

product price: $693.99
/ea
Free Shipping & Returns

Key Features

Includes - Constant Pressure Booster Pumps
Pump Controller
HP - Pumps
3/4 hp
Voltage - Pumps
115V AC
Phase - Pumps
1
Inlet Size - Pumps
1 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4HFA7
Zoro #
G2273327
UPC #
190735325322
Country of Origin
China

Dimensions

Inlet Size - Pumps
1 in NPT
Outlet Size - Pumps
1 in NPT
Length
17 in
Height
18 in
Width
10 in
Manufacturers Warranty Length
1 yr
Max. Dia. Solids
1
Overall Length
11.88 in
Overall Width
8.84 in
Overall Height
13.59 in
Cord Length
5.5 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
1 in
Solid Diameter (Maximum)
1 in
Compatible Discharge Pipe Size
1 in
Discharge Flange Size
1 in
Solids Diameter - Maximum
1 in
Discharge Diameter
1 in
Inlet Diameter
1 in

Details

Includes - Constant Pressure Booster Pumps
Pump Controller
Item
Constant Pressure Booster Pump
HP - Pumps
3/4 hp
Voltage - Pumps
115V AC
Phase - Pumps
1
Number of Stages - Pumps
2
Tank (Gal.) - Pumps
Tank Not Included
Max. Pressure - Pumps
37 psi
Housing Material - Pumps
304 Stainless Steel
NEMA Rating - Pumps
2
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Outlet
1"
Housing Material
Stainless steel
Duty
Continuous
Agency Compliance
CSA CUS
Best Efficiency GPM @ Head
15.4 @ 45 ft
GPM @ 30 PSI
7.4
Includes
Pump Controller
Stages
2
Amps
6.1 A
Duty - Pumps
Continuous
Motor RPM
3,450 RPM
Motor Type
PSC
Impeller Type
Closed
Best Efficiency GPM @ PSI
15.4 @ 20
Voltage
115
Inlet
1"
Self-Priming
No
Max. Pressure
36.7 psi
GPM @ 20 PSI
12.7
Max. Temp - Pumps
95 Degrees F
Motor Ambient Temp. Rating
65 Degrees C/149 Degrees F
Hz
60
GPM @ 25 PSI
10.5
Max. Case Pressure
75 psi
HP
3/4
Phase
Single
Wetted Materials
Thermoplastic,CI,416 SS,Buna N,Carbon,Ceramic,BR
GPM @ 35 PSI
1.8
Item - Constant Pressure Booster Pumps
Constant Pressure Booster System
Suction Lift
25 ft
GPM @ 15 PSI
15.0
Seal Material
Buna-N
Pressure Switch Setting
14.5 to 45 psi
Motor Enclosure
Totally Enclosed Fan Cooled (TEFC)
Impeller Material
Thermoplastic
Standards
CSA Certified, CUS Certified
Application
Transfer
Seal Type
Mechanical Seal
Thermal Overload Protection
Yes
For Use With Potable Systems
No
System Pressure (Maximum)
37 psi
Maximum RPM
3,450 RPM
Frequency
60 Hz
Pumping Application
Multi-Bath Homes
Pressure Boost (Minimum)
25 psi
Includes Controller
Yes
Maximum Flow Rate
15 gpm
Electrical Connection Type
Plug-In
Pump Housing Material
Stainless Steel
Priming
Manual
Nameplate Voltage
115V AC
Minimum Flow Rate
1.8 gpm
Tank Type
Tankless
Maximum Media Temperature
95 Degrees F
Wetted Material
Stainless Steel, BR, Buna-N, Carbon, Ceramic, CI, Thermoplastic
Motor Ambient Temperature (Maximum)
149 Degrees F
Duty Cycle
Continuous
Case Pressure (Maximum)
75 psi
Discharge Type
NPT
Pressure Boost (Maximum)
35 psi
Compatible with Media Type
Water
Suction Lift (Maximum)
25 ft
Horsepower
3/4 hp
Number of Stages
2
Impeller Design
Closed
Intake Type
NPT
Inlet Gender
Female
Pump Casing Material
Stainless Steel
Motor Ambient Temperature - Maximum
149 Degrees F
Motor Ambient Temperature - Minimum
5 Degrees C
Pressure Boost - Maximum
35 psi
Shut Off Pressure - Maximum
37 psi
Pressure Switch Setting - Maximum
45 psi
Motor Design
Capacitor-Start
Revolutions Per Minute - Maximum
3,450 RPM
Power Source
Corded Electric
For Media Type
Clear Water
Discharge Gender
Female
Series
HAS
Media Temperature - Maximum
95 Degrees F
Case Pressure - Maximum
75 psi
Flow Rate - Minimum
1.8 gpm
Pressure Switch Setting - Minimum
14.5 psi
Installation
Floor Standing
Feet of Head - Maximum
83 ft
Full Load Current
6.1 A
Inlet Standard
NPT
Pressure Boost - Minimum
25 psi
Thermal Protection
Auto
Pump Technology
Centrifugal
Discharge Standard
NPT
Motor Enclosure Design
Totally Enclosed Fan Cooled
Suction Lift - Maximum
25 ft
Mounting Orientation
Horizontal
Flow Rate - Maximum
15 gpm

Description

Constant Pressure Booster System, 3/4 HP, Voltage 115, 1 Phase, Amps 6.1, 60 Hz, Motor RPM 3450, TEFC, Service Factor 1.1, Motor Ambient Temp. Rating 65 Degrees C/149 Degrees F, Housing Material Stainless Steel, Stages 2, Thermoplastic,CI,416 SS,Buna N,Carbon,Ceramic,BR Wetted Materials, Thermoplastic Impeller Material, Closed Impeller Type, Buna Seal Material

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
