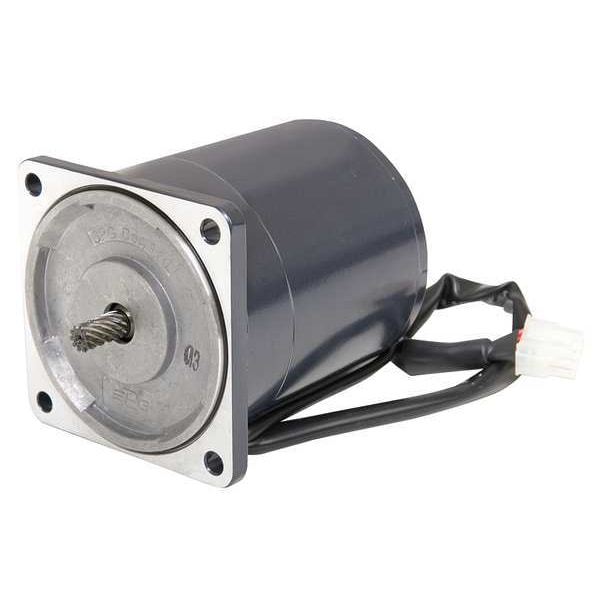

DC Motor, PM, TENV, 1/8 HP, 2920 rpm, 24VDC

Mfr # 23L405
Zoro # G4147991

192.99

Free Shipping & Returns

Zoro's best price: not eligible for any other offers or promotions

Key Features

1/8 hp

Voltage

24V DC

Nameplate RPM

2,920 RPM

Shaft Dia.

7/16 in

Frame

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 23L405
Zoro #: G4147991
UPC #: 190735182789
Country of Origin: Korea, Republic of

Dimensions

Shaft Dia.: 7/16 in
Overall Length: 6 7/16 in
Shaft Length: 13/16 in
Length Less Shaft: 5 5/8 in
Wire Rope Length: 6 7/16 in
Length: 6 7/16 in

Details

Item: Gearmotor Component Motor
HP: 1/8 hp
Voltage: 24V DC
Nameplate RPM: 2,920 RPM
Frame: 90
Full Load Amps: 5.6 A
RPM Range: 1,801-3,000
Motor Thermal Protection: None
Max. Ambient Temp.: 40 Degrees C
Motor Shaft Rotation: CW/CCW
NEMA/IEC Frame: 90
Stud Quantity: 4
Motor Bearings: Ball
Motor Design: Permanent Split Capacitor
Motor Mounting Type: C-Face
Mounting Stud Location: Shaft End
Motor Enclosure Design: Totally Enclosed Non-Ventilated
Standards: cULus (E47479)
Ins. Class: B
Full Load Torque: 2.691 in-lb
Voltage Compatibility: 24V DC
Power Supply: DC

Description

Gearmotor Component Motor, Permanent Split Capacitor, Totally Enclosed Non-Ventilated, 1/8 hp HP, Nameplate RPM 2,920 RPM, Voltage 24V DC, Not Applicable Hz, Full Load Amps 5.6 A, Full Load Torque 2.691 in-lb, NEMA/IEC Frame 90, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Length Less Shaft 5 5/8 in, Shaft Dia. 7/16 in, Shaft Length 13/16 in
