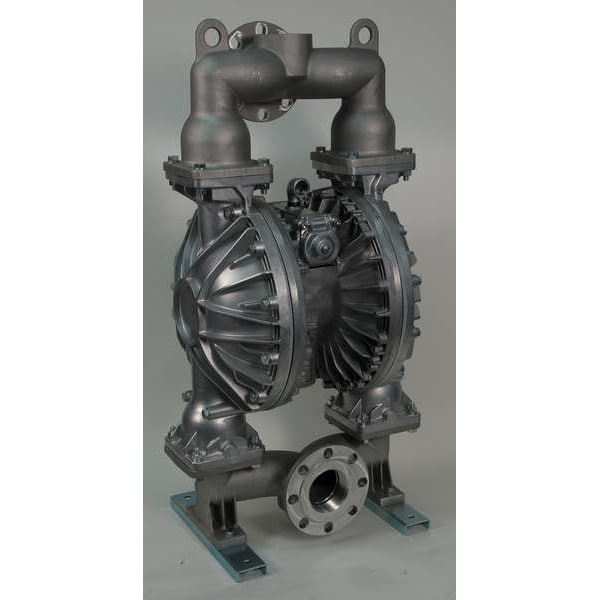

Double Diaphragm Pump, Aluminum, Air Operated, Buna N, 215 GPM

  • Mfr # 22A595

  • Zoro # G2236501

product price:  $3,627.99
/ea
Additional $135.00 delivery surcharge applies per item.
See details

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
22A595
Zoro #
G2236501
UPC #
190735168424
Country of Origin
Japan

Dimensions

Air Intake Connection Size
3/4 in
Manufacturers Warranty Length
1 yr
Overall Length
16.5 in
Overall Width
2.4 in
Overall Height
4.8 in
Media Discharge Connection Size
3 in
Media Intake Connection Size
3 in
Solid Diameter (Maximum)
0.41 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Ball
Air Consumption (Maximum)
185 scfm
Air Intake Connection Type
NPT Threaded Flange
Check Seat Material
Buna-N
Diaphragm Material
Buna-N
Media Temperature (Maximum)
180 Degrees F
Media Temperature (Minimum)
10 Degrees F
Operating Pressure (Maximum)
100 psi
Pump Operation Type
Air
Self-Priming Wet
28 ft
Self-Priming Dry
19 ft
Includes
Ball Valve
For Use With
General Indsutrial Use Including Waste Oils, Water Based Chemicals and Fluids with A Neutral Ph. Handles Suspended Solids and Shear Sensative Fluids
Inlet/Outlet
3 in
Manifold Connection Type
NPT
Media Discharge Location
Top
Flow Rate @ 30 psi
152 gpm
Mounting Hardware Material
Steel
Duty Cycle
Continuous
Feet of Head (Maximum)
231 ft
Wetted Housing Material
Aluminum
Flow Rate (Maximum)
215 gpm
Media Discharge Connection Type
NPT Threaded Flange
Flow Rate @ 70 psi
210 gpm
Flow Rate @ 100 psi
220 gpm
Viscosity (Maximum)
50,000 cps
Media Intake Connection Type
NPT Threaded Flange
For Use With Potable Systems
No
Air Intake Pressure (Maximum)
100 psi
Priming
Self-Priming
Flow Rate @ 60 psi
200 gpm
Media Intake Location
Bottom
Fluid Chamber Assembly Type
Bolted
Diaphragm Base Material
Buna-N
Diaphragm Reinforcement
Fabric Reinforced
Wetted Body Material
Aluminum
Chemical Compatibility
Antifreeze, Calcium Carbonate, Detergents, Diesel, Motor Oil, Water
Includes Clean In Place Technology
No Clean In Place Included
Manifold Connection Standard
NPT
Material Conductivity
Conductive
Media Discharge Port Configuration
Center Horizontal
Manifold Port Connection Type
Single Port
Center Section Material
Aluminum
Displacement Per Stroke
1.13 gal
Media Intake Port Configuration
Center Horizontal
Includes Solenoid
No Solenoid Included

Description

Double Diaphragm Pump, Air Consumption (Maximum) 185 scfm, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT Threaded Flange, Check Seat Material Buna-N, Diaphragm Material Buna-N, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 215 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3 in, Media Discharge Connection Type NPT Threaded Flange, Media Discharge Location Top, Media Intake Connection Size 3 in
