  9. Double Diaphragm Pump, Stainless steel, Air Operated, Santoprene

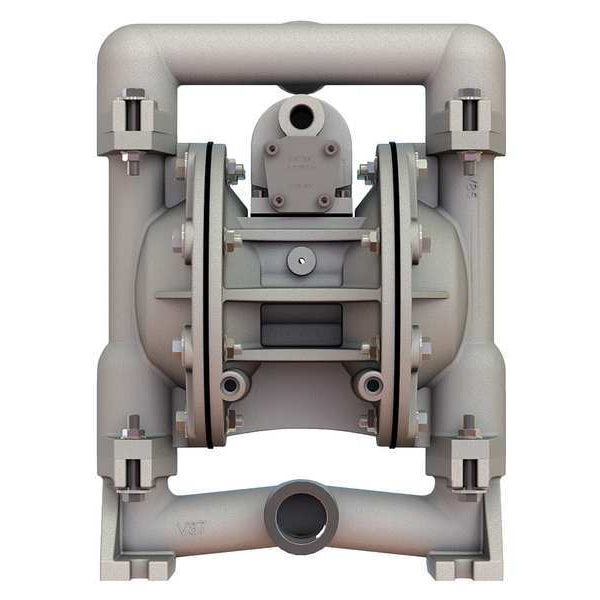

Versa-Matic Double Diaphragm Pump, Stainless steel, Air Operated, Santoprene E1SA6X669C-ATEX - main

Double Diaphragm Pump, Stainless steel, Air Operated, Santoprene

  • Mfr # E1SA6X669C-ATEX

  • Zoro # G6070513

product price: $2,663.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Stainless Steel
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Santoprene®
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E1SA6X669C-ATEX
Zoro #
G6070513
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
3/8 in FNPT
Manufacturers Warranty Length
1 yr
Overall Length
9.1 in
Overall Width
10-23/32 in
Overall Height
14.5 in
Solid Diameter (Maximum)
1/8 in
Media Intake Connection Size
1 in
Media Discharge Connection Size
1 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Stainless Steel
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Santoprene®
Valve Type
Ball
Air Consumption (Maximum)
50 scfm
Air Intake Connection Type
NPT
Check Seat Material
Stainless Steel
Diaphragm Material
Santoprene
Media Temperature (Maximum)
300 Degrees F
Operating Pressure (Maximum)
125 psi
Self-Priming Wet
31 ft
Self-Priming Dry
16 ft
Pump Operation Type
Air
Agency Compliance
ABS, ATEX, CE, EAC
Standards
ATEX, EN ISO 80079-36: 2016, EN ISO 80079-37: 2016, EN60079-25: 2010
Inlet/Outlet
1 in
Duty Cycle
Continuous
Flow Rate @ 80 psi
45.4 gpm
For Use With Potable Systems
No
Manifold Connection Type
NPT
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Potassium Hydroxide 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Sulfuric Acid 80%, Water
Flow Rate @ 60 psi
40.8 gpm
Media Intake Location
Bottom, Center
Media Intake Connection Type
NPT
Flow Rate @ 100 psi
48.2 gpm
Flow Rate @ 40 psi
36.4 gpm
Media Discharge Connection Type
NPT
Flow Rate (Maximum)
49 gpm
Series Family
E1
Media Discharge Location
Center, Top
Air Intake Pressure (Maximum)
125 psi
Flow Rate @ 20 psi
26.5 gpm
Feet of Head (Maximum)
320 ft
Priming
Self-Priming
Wetted Housing Material
316 Stainless Steel

Description

Double Diaphragm Pump, Air Consumption (Maximum) 50 scfm, Air Intake Connection Size 3/8 in, Air Intake Connection Type NPT, Check Seat Material Stainless Steel, Diaphragm Material Santoprene, Feet of Head (Maximum) 320 ft, Flow Rate (Maximum) 49 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type NPT, Media Discharge Location Center, Top, Media Intake Connection Size 1 in, Media Intake Connection Type NPT
