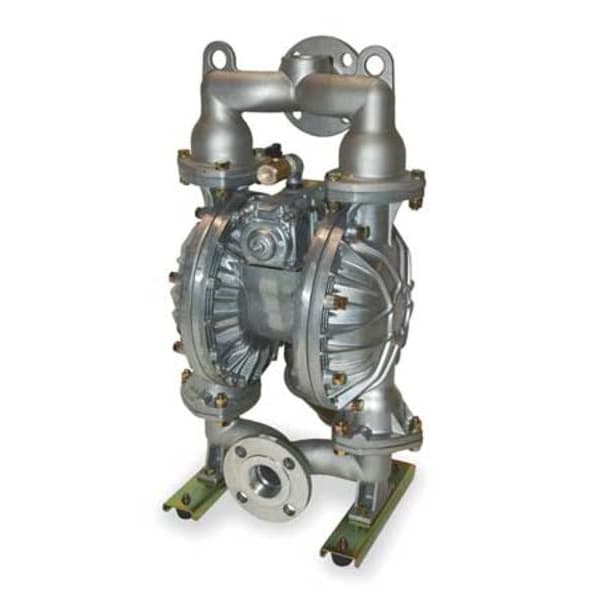

Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 120 GPM

  • Mfr # 6PY57

  • Zoro # G1706941

product price:  $2,892.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6PY57
Zoro #
G1706941
UPC #
190735370780
Country of Origin
Japan

Dimensions

Air Intake Connection Size
3/4 in
Manufacturers Warranty Length
1 yr
Overall Width
12.8 in
Overall Height
30.8 in
Overall Length
17.8 in
Media Discharge Connection Size
2 in
Solid Diameter (Maximum)
0.31 in
Media Intake Connection Size
2 in
Wire Rope Length
17.8 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
Air Consumption (Maximum)
180 scfm
Air Intake Connection Type
NPT Threaded Flange
Check Seat Material
Aluminum
Diaphragm Material
PTFE
Media Temperature (Maximum)
212 Degrees F
Media Temperature (Minimum)
40 Degrees F
Operating Pressure (Maximum)
100 psi
Self-Priming Dry
15 ft
Pump Operation Type
Air
Self-Priming Wet
28 ft
Inlet/Outlet
2 in
Flow Rate @ 60 psi
110 gpm
Viscosity (Maximum)
50,000 cps
For Use With Potable Systems
No
Media Discharge Connection Type
NPT Threaded Flange
Media Discharge Location
Top
Manifold Connection Type
NPT
Flow Rate @ 90 psi
119 gpm
Mounting Hardware Material
Steel
Priming
Self-Priming
Flow Rate @ 10 psi
65 gpm
Feet of Head (Maximum)
231 ft
Wetted Housing Material
Aluminum
Duty Cycle
Continuous
Flow Rate @ 50 psi
98 gpm
Flow Rate (Maximum)
120 gpm
Air Intake Pressure (Maximum)
100 psi
Flow Rate @ 20 psi
60 gpm
Media Intake Connection Type
NPT Threaded Flange
Flow Rate @ 100 psi
120 gpm
Media Intake Location
Bottom
Flow Rate @ 40 psi
85 gpm
Flow Rate @ 30 psi
81 gpm
Includes Solenoid
No Solenoid Included
Diaphragm Reinforcement
Not Reinforced
Includes
Ball Valve, Manual
Includes Clean In Place Technology
No Clean In Place Included
Material Conductivity
Conductive
Media Intake Port Configuration
Center Horizontal
Fluid Chamber Assembly Type
Bolted
Manifold Port Connection Type
Single Port
Media Discharge Port Configuration
Center Horizontal
Chemical Compatibility
Alcohol, Antifreeze, Calcium Carbonate, Detergents, Diesel, Diesel Exhaust Fluid, Gasoline, Hydraulic Fluid, Kerosene, Motor Oil, Oil-Based Paint, Water
Displacement Per Stroke
0.345 gal
Wetted Body Material
Aluminum
Diaphragm Base Material
PTFE
Manifold Connection Standard
NPT
Center Section Material
Aluminum

Description

Double Diaphragm Pump, Air Consumption (Maximum) 180 scfm, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT Threaded Flange, Check Seat Material Aluminum, Diaphragm Material PTFE, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 120 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type NPT Threaded Flange, Media Discharge Location Top, Media Intake Connection Size 2 in
