  9. Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 21 GPM
Dayton

Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 21 GPM

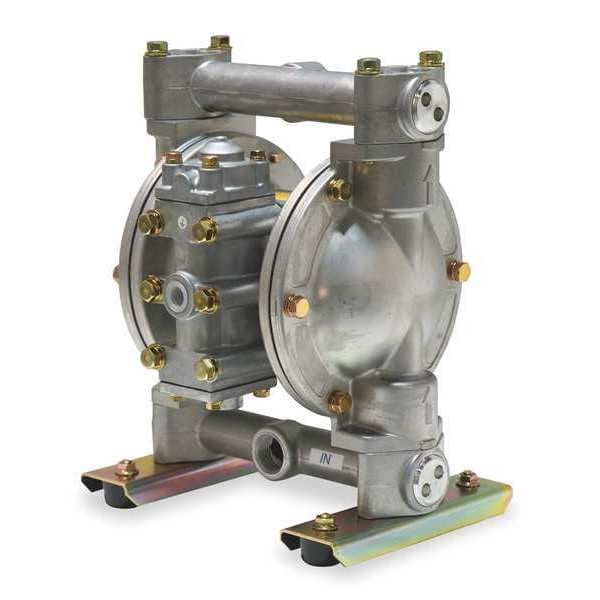

Dayton Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 21 GPM 6PY52
Hover or click to zoom Tap to zoom
$1,210.40
  • Housing Material - Pumps: Aluminum
  • Diaphragm Material - Pumps: PTFE
  • Max. Flow: 21 gpm
See full product details
This item ships free.
Total: $1,210.40

Dayton #6PY52 Specifications

  • Housing Material - Pumps: Aluminum
  • Diaphragm Material - Pumps: PTFE
  • Max. Flow: 21 gpm
  • Item - Air Operated Pumps: Double Diaphragm Pump
  • Pump Operation Type: Air Operated
  • Max. Temp - Pumps: 212 Degrees F
  • Inlet/Outlet Size: 3/4 in
  • Connection Style: NPT
  • Air Inlet Size: 1/4 in FNPT
  • Manifold Connection: Single
  • Operation Type: Air Operated
  • Max. Temp.: 212 Degrees F
  • Self-Priming Wet: 28 ft
  • Length: 9 51/64 in
  • Max. Flow GPM: 21
  • Self-Priming Dry: 15 ft
  • Width: 12 13/32 in
  • Ball Material: PTFE
  • Check Seat Material: Stainless Steel
  • Body Material: Aluminum
  • Manufacturers Warranty Length: 1 yr
  • Max. Operating Pressure: 100 psi
  • Diaphragm Material: PTFE
  • Valve Type: Ball
  • Item: Double Diaphragm Pump
  • Max. Dia. Solids: 1/16 in
  • Height: 12 9/16 in
  • Length (Straight Wireway): 9 51/64 in
  • Country of Origin (subject to change): Japan

Description

Double Diaphragm Pump, Pump Operation Type Air Operated, Max. Flow 21 gpm, Max. Temp - Pumps 212 Degrees F, Housing Material - Pumps Aluminum, Inlet/Outlet Size 3/4 in, Connection Style NPT, Air Inlet Size 1/4 in FNPT, Diaphragm Material - Pumps PTFE, Valve Type Ball, Max. Flow GPM 21 gpm, Max. Operating Pressure 100 psi, Ball Material PTFE, Check Seat Material Stainless Steel, Max. Dia. Solids 1/16 in, Manifold Connection Single, Length 9 51/64 in, Width 12 13/32 in, Height 12 9/16 in
