  9. Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 27 GPM

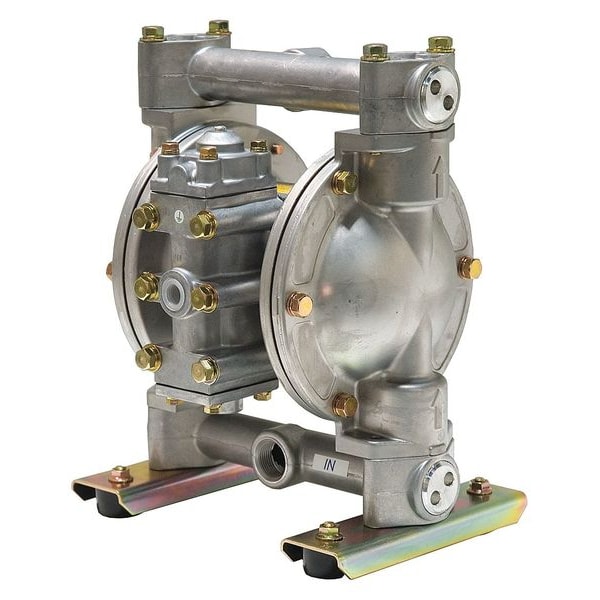

Dayton Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 27 GPM 34TJ41 - main

Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 27 GPM

  • Mfr # 34TJ41

  • Zoro # G0046840

product price: $1,144.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
34TJ41
Zoro #
G0046840
UPC #
190735266342
Country of Origin
Japan

Dimensions

Air Intake Connection Size
1/4 in FNPT
Manufacturers Warranty Length
1 yr
Overall Height
12.6 in
Overall Length
8 in
Overall Width
9-13/16 in
Solid Diameter (Maximum)
1/16 in
Media Intake Connection Size
3/4 in
Media Discharge Connection Size
3/4 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
Air Consumption (Maximum)
45 scfm
Air Intake Connection Type
FNPT
Check Seat Material
316 Stainless Steel
Diaphragm Material
PTFE
Media Temperature (Maximum)
212 Degrees F
Media Temperature (Minimum)
40 Degrees F
Operating Pressure (Maximum)
100 psi
Self-Priming Wet
28 ft
Standards
UL Listed
Agency Compliance
UL
Pump Operation Type
Air
Self-Priming Dry
15 ft
Includes
Ball Valve
Inlet/Outlet
3/4 in
For Use With Potable Systems
No
Viscosity (Maximum)
40,000 cps
Media Intake Location
Bottom
Media Discharge Location
Top
Wetted Housing Material
Aluminum
Flow Rate @ 100 psi
29 gpm
Flow Rate @ 30 psi
17 gpm
Manifold Connection Type
NPT
Priming
Self-Priming
Flow Rate (Maximum)
27 gpm
Mounting Hardware Material
Stainless Steel, Steel
Duty Cycle
Continuous
Media Intake Connection Type
FNPT
Media Discharge Connection Type
NPT
Flow Rate @ 15 psi
29.5 gpm
Flow Rate @ 50 psi
24.5 gpm
Air Intake Pressure (Maximum)
100 psi

Description

Double Diaphragm Pump, Air Consumption (Maximum) 45 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type FNPT, Check Seat Material 316 Stainless Steel, Diaphragm Material PTFE, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 27 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3/4 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 3/4 in, Media Intake Connection Type FNPT, Media Intake Location Bottom
