Shop DAYTON

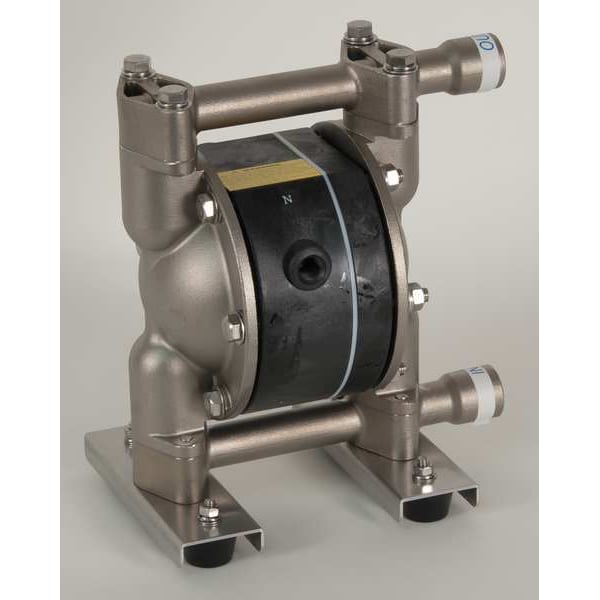

Double Diaphragm Pump, Stainless steel, Air Operated, Santoprene

  • Mfr # 22A597

  • Zoro # G5482251

product price:  $1,665.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Stainless Steel
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Santoprene
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
22A597
Zoro #
G5482251
UPC #
190735168448
Country of Origin
Japan

Dimensions

Air Intake Connection Size
1/4 in
Manufacturers Warranty Length
1 yr
Overall Width
7.3 in
Overall Length
8.3 in
Overall Height
9.8 in
Media Intake Connection Size
1/2 in
Media Discharge Connection Size
1/2 in
Solid Diameter (Maximum)
0.03 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Stainless Steel
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Santoprene
Valve Type
Ball
Air Consumption (Maximum)
21 scfm
Air Intake Connection Type
FNPT
Check Seat Material
316 Stainless Steel
Diaphragm Material
Santoprene
Media Temperature (Maximum)
212 Degrees F
Media Temperature (Minimum)
-10 Degrees F
Operating Pressure (Maximum)
100 psi
Self-Priming Dry
5 ft
Pump Operation Type
Air
Self-Priming Wet
28 ft
Includes
Ball Valve
Inlet/Outlet
1/2 in
For Use With
General Indsutrial Use. Good for Use with Chemicals That Require Low Contamination. Handles Suspended Solids and Shear Sensative Fluids
Priming
Self-Priming
Media Intake Connection Type
NPT
Media Discharge Location
Top
Media Intake Location
Bottom
Flow Rate @ 20 psi
5 gpm
Air Intake Pressure (Maximum)
100 psi
Flow Rate (Maximum)
14 gpm
Flow Rate @ 80 psi
11 gpm
For Use With Potable Systems
No
Mounting Hardware Material
Steel
Manifold Connection Type
NPT
Viscosity (Maximum)
15,000 cps
Media Discharge Connection Type
NPT
Duty Cycle
Continuous
Feet of Head (Maximum)
231 ft
Flow Rate @ 100 psi
13 gpm
Wetted Housing Material
316 Stainless Steel
Flow Rate @ 60 psi
9.8 gpm
Diaphragm Reinforcement
Not Reinforced
Includes Solenoid
No Solenoid Included
Media Discharge Port Configuration
Side
Wetted Body Material
316 Stainless Steel
Includes Clean In Place Technology
No Clean In Place Included
Diaphragm Base Material
Santoprene
Manifold Port Connection Type
Single Port
Center Section Material
Aluminum
Media Intake Port Configuration
Side
Material Conductivity
Conductive
Fluid Chamber Assembly Type
Bolted
Manifold Connection Standard
NPT
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Detergents, Diesel Exhaust Fluid, Phosphoric Acid 50%, Potassium Hydroxide, Sulfuric Acid 80%, Sulfuric Acid 90%, Water
Displacement Per Stroke
0.0169 gal

Description

Double Diaphragm Pump, Air Consumption (Maximum) 21 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type FNPT, Check Seat Material 316 Stainless Steel, Diaphragm Material Santoprene, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 14 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 1/2 in, Media Intake Connection Type FNPT

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
