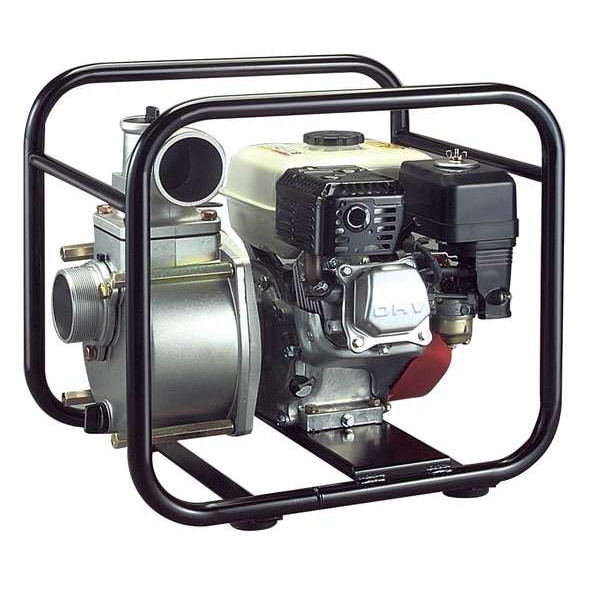

Engine Driven Semi-Trash Pump, 4.8 HP

  • Mfr # 11G235

  • Zoro # G4273114


product price: $909.99
/ea
Free Shipping & Returns

Key Features

GPM of Water @ 80 Ft. of Head
31
Sensor Type
Low Oil
Engine/Motor Type
Gas
Number of Impellers
1
Application
Semi-Trash
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
11G235
Zoro #
G4273114
UPC #
190735110737
Country of Origin
Thailand

Dimensions

Length
21-7/64"
Width
15-11/16"
Engine Size
163 cc
Height
18-13/16"
Overall Height
18 13/16 in
Overall Width
15 11/16 in
Inlet Dia.
3 in
Overall Length
21 1/8 in
Max. Diameter Solids
3/4 in
Discharge Dia.
3 in
Inlet Diameter
3 in
Discharge Diameter
3 in
Solids Diameter - Maximum
3/4 in

Details

GPM of Water @ 80 Ft. of Head
31
Sensor Type
Low Oil
Engine/Motor Type
Gas
Number of Impellers
1
Application
Semi-Trash
GPM of Water @ 20 Ft. of Head
208
HP
4 4/5 hp
Engine Brand
Honda
Tank Capacity
3.28 qt
Inlet
3 in NPT
Agency Compliance
EPA and CARB Certified Engine
Outlet
3" NPT
Max. Head
85 ft
Self-Priming
Yes
Mechanical Seal
Silicon Carbide, Buna N
Material of Construction
Aluminum
Temp. Range
35 Degrees to 105 Degrees F
Impeller Material
Spheroid Graphite Ductile
Max. Pressure
36.8 psi
GPM of Water @ 50 Ft. of Head
147
GPM of Water @ 70 Ft. of Head
78
Casing Adapter
Spheroid Graphite Ductile
GPM of Water @ 60 Ft. of Head
115
Seal Material
Buna-N
GPM of Water @ 30 Ft. of Head
194
Max. Suction Lift
26 ft
Ignition Type
Recoil-Start
Solids Handling Capacity
3/4"
Engine RPM
3600
Check Valve
Buna N
Volute/Wear Plate
Spheroid Graphite Ductile Iron
Impeller Type
Semi-Open
GPM of Water @ 40 Ft. of Head
171
Item
Engine Driven Pump
Roll Bar Frame
Steel
GPM of Water @ 10 Ft. of Head
226
Power Source
Gas Engine
Discharge Standard
NPT
Impeller Design
Semi-Open
Body Material
Aluminum
Discharge
3 in NPT
Flow Rate @ 60 Ft. of Head
115 gpm
Inlet Standard
NPT
Flow Rate @ 80 Ft. of Head
31 gpm
Volute Material
Ductile Iron
Flow Rate @ 40 Ft. of Head
171 gpm
Maximum Discharge Pressure
37 psi
RPM
3,600 RPM
Pump Mechanism
Centrifugal
Frame Design - Pumps
Full Tubular Frame
Standards
CARB Certified Engine, EPA Certified Engine
Engine Series
GX160
Frame Design
Roll Cage
Feet of Head - Maximum
85 ft
Horsepower
4 4/5 hp
Suction Lift - Maximum
26 ft
Rotation Speed - Maximum
3,600 RPM
Discharge Pressure - Maximum
37 psi

Description

Engine Driven Pump, Engine Size 163 cc, HP 4 4/5 hp, Tank Capacity 3.28 qt, Ignition Type Recoil-Start, Pump Mechanism Centrifugal, Body Material Aluminum, Volute Material Ductile Iron, Seal Material Buna-N, Flow Rate @ 40 Ft. of Head 171 gpm, Flow Rate @ 60 Ft. of Head 115 gpm, Flow Rate @ 80 Ft. of Head 31 gpm, Max. Head 85 ft, Max. Suction Lift 26 ft, Frame Design - Pumps Full Tubular Frame, Impeller Design Semi-Open, Maximum Discharge Pressure 37 psi, Max. Diameter Solids 3/4 in
