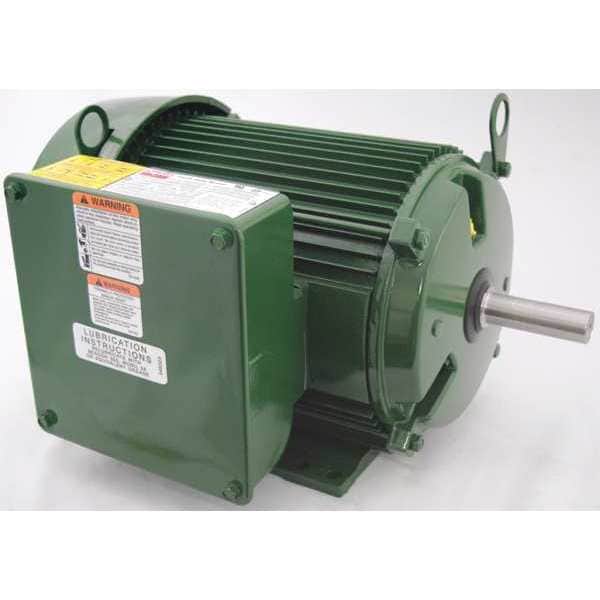

Dayton Extra High Torque Farm Duty Motor, Capacitor-Start/Run, 2 HP, 115/230V AC, 1,750 Nameplate RPM 6K887 - main

Extra High Torque Farm Duty Motor, Capacitor-Start/Run, 2 HP, 115/230V AC, 1,750 Nameplate RPM

  • Mfr # 6K887

  • Zoro # G1854450

product price:  $1,314.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Phase
Single
HP
2
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
6K887
Zoro #
G1854450
UPC #
190735366691
Country of Origin
Mexico

Dimensions

Length Less Shaft
14 1/16 in
Overall Length
16 13/16 in
Shaft Length
2 3/4 in
Shaft Dia.
7/8 in

Details

Item
Extra High Torque Farm Duty Motor
Motor Design
Capacitor-Start/Run
Phase
Single
HP
2
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
182TZ
Motor Service Factor
1.15
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,750
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Sub Application
Extra High Torque
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258525), UL Recognized (E47479)
Item - Farm Duty Motors
Extra High Torque Farm Duty Motor
Motor Bearings
Ball
Capacitor Required
Included
Nominal Efficiency
73.9 %
Includes
Shaft Key, Gasketed Conduit Box and Shaft Slinger
Finish
Green
Max. Ambient Temperature
40 Degrees C
Frame Material
Rolled steel
Full Load Amps
25.6/12.8 A
Hz
60 Hz
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Duty
Continuous
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous
No. of Speeds
1

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 25.6/12.8 A, 182TZ Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
