  6. General Purpose Farm Duty Motor, 3-Phase, 3/4 HP, 208-230/460V AC, 1,745 Nameplate RPM, 56 Frame

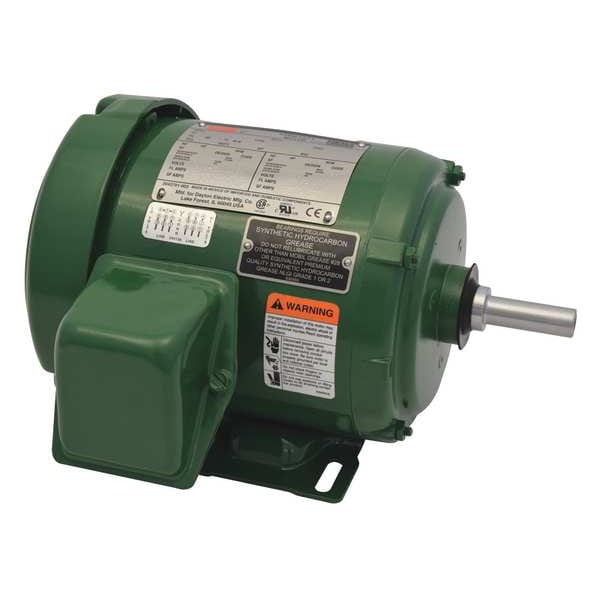

Dayton General Purpose Farm Duty Motor, 3-Phase, 3/4 HP, 208-230/460V AC, 1,745 Nameplate RPM, 56 Frame 1EJR5BG - main

General Purpose Farm Duty Motor, 3-Phase, 3/4 HP, 208-230/460V AC, 1,745 Nameplate RPM, 56 Frame

  • Mfr # 1EJR5BG

  • Zoro # G0556683

product price:  $473.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
Phase
Three
HP
3/4
RPM Range
1,701-1,800
Voltage
208-230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1EJR5BG
Zoro #
G0556683
UPC #
190735140581
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Overall Length
11 11/16 in
Length Less Shaft
9 13/16 in

Details

Item
General Purpose Farm Duty Motor
Motor Design
3-Phase
Phase
Three
HP
3/4
RPM Range
1,701-1,800
Voltage
208-230/460V AC
Frame
56
Motor Service Factor
1.25
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,745
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Rigid Base
Motor Sub Application
General Purpose Farm
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258525), UL Recognized (E47479)
Item - Farm Duty Motors
General Purpose Farm Duty Motor
Frame Material
Rolled steel
Duty
Continuous
Max. Ambient Temperature
40 Degrees C
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Finish
Green
Nominal Efficiency
81.5 %
Motor Bearings
Ball
Ins. Class
F
Hz
60/50 Hz
Includes
Shaft Slinger, Gasketed Conduit Box, Shaft Key
Full Load Amps
2.4-2.4/1.2 A
No. of Speeds
1
Duty Cycle
Continuous
Max. Ambient Temp.
40 Degrees C
Application
Farm Duty
Replacement For
3N627

Description

Farm Duty Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.4-2.4/1.2 A, 56 Frame, 60/50 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Frame Material Steel
