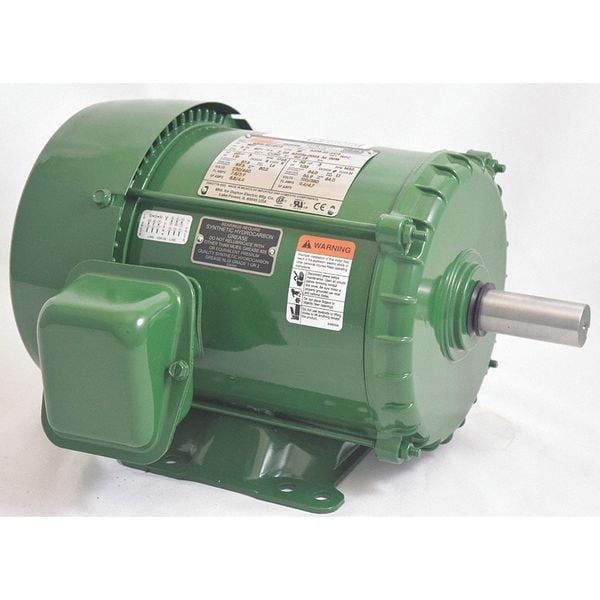

Dayton General Purpose Farm Duty Motor, 3-Phase, 3 HP, 230/460V AC, 1,765 Nameplate RPM, 182T Frame 35Z919 - main

General Purpose Farm Duty Motor, 3-Phase, 3 HP, 230/460V AC, 1,765 Nameplate RPM, 182T Frame

  • Mfr # 35Z919

  • Zoro # G4989266

product price:  $1,207.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
Phase
Three
HP
3
RPM Range
1,701-1,800
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
35Z919
Zoro #
G4989266
UPC #
190735274187
Country of Origin
Mexico

Dimensions

Shaft Length
2 3/4 in
Shaft Dia.
1 1/8 in
Overall Length
14 7/8 in
Length Less Shaft
12 1/8 in

Details

Item
General Purpose Farm Duty Motor
Motor Design
3-Phase
Phase
Three
HP
3
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
182T
Motor Service Factor
1.15
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,765
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Shaft Design
Keyed
Motor Sub Application
General Purpose Farm
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258525), UL Recognized (E47479)
Duty
Continuous
Includes
Shaft Slinger, Gasketed Conduit Box, Shaft Key
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Bearings
Ball
Nominal Efficiency
89.5 %
Finish
Dayton Green/Gray
Item - Farm Duty Motors
General Purpose Farm Duty Motor
Hz
60/50 Hz
Ins. Class
F
Full Load Amps
7.8/3.9 A
Max. Ambient Temperature
40 Degrees C
Frame Material
Rolled steel
Motor Efficiency Group
NEMA Premium Efficient
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Duty Cycle
Continuous
Application
Farm Duty

Description

Farm Duty Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 7.8/3.9 A, 182T Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
