Dayton

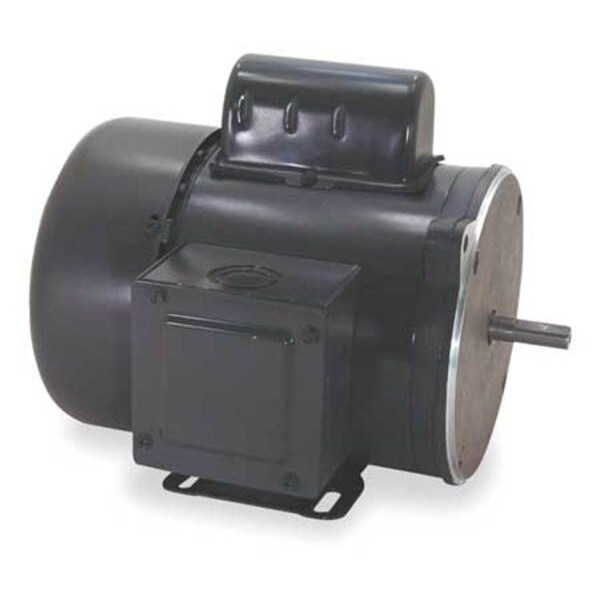

Auger Drive Motor, Capacitor-Start, 1/2 HP, 115/230V AC, 1,725 Nameplate RPM, 56YZ Frame

Dayton Auger Drive Motor,  Capacitor-Start,  1/2 HP,  115/230V AC,  1,725 Nameplate RPM,  56YZ Frame 5K044
Hover or click to zoom Tap to zoom
$247.41
  • Motor Sub Application: Auger
  • Item: Auger Drive Motor
  • Motor Design: Capacitor-Start
See full product details
This item ships free.

Total: $247.41

Dayton #5K044 Specifications

  • Motor Sub Application: Auger
  • Item: Auger Drive Motor
  • Motor Design: Capacitor-Start
  • Phase: Single
  • HP: 1/2
  • RPM Range: 1,701-1,800
  • Voltage: 115/230V AC
  • Frame: 56YZ
  • Motor Service Factor: 1
  • Motor Thermal Protection: Manual
  • Motor Enclosure Design: Totally Enclosed Fan-Cooled
  • Nameplate RPM: 1,725
  • Motor Application: Farm Duty
  • Motor Frame Material: Rolled Steel
  • Motor Mounting Position: Horizontal
  • Motor Mounting Type: Face/Base
  • Motor Shaft Design: Flat
  • Motor Shaft Rotation: CW/CCW
  • Standards: CSA Certified (258501), UL Recognized (E37403)
  • Item - Farm Duty Motors: Auger Drive Motor
  • Motor Bearings: Ball
  • Nominal Efficiency: 61.2 %
  • Includes: Gasketed Conduit Box and Capacitor Cover, Shaft Extension beyond fan guard for manual cranking
  • Full Load Amps: 8.0/4.0
  • Overall Length: 11 9/16 in
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
  • Ins. Class: B
  • Duty: Continuous
  • Max. Ambient Temperature: 40 Degrees C
  • Length Less Shaft: 9 13/16 in
  • Capacitor Required: Included
  • Shaft Length: 1 3/4 in
  • Shaft Dia.: 1/2 in
  • Hz: 60/50
  • Max. Ambient Temp.: 40 Degrees C
  • Duty Cycle: Continuous
  • No. of Speeds: 1
  • Country of Origin (subject to change): Mexico

Description

Auger Drive Motor, Single Phase, Motor Design Capacitor-Start, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.0/4.0, 56YZ Frame, 60/50 Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel
