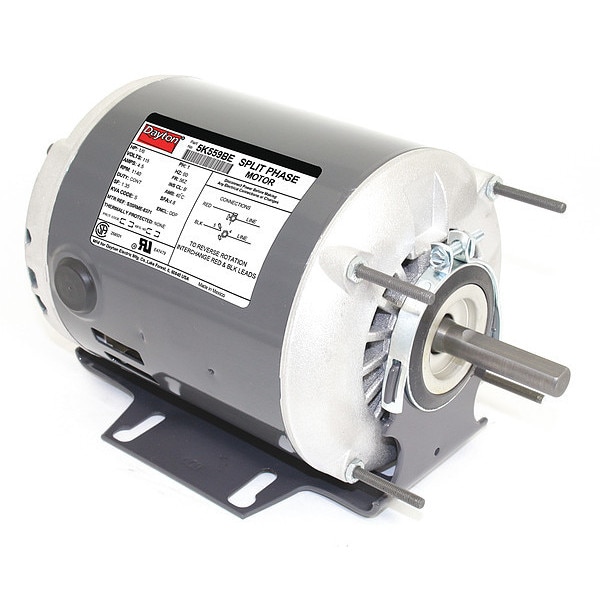

GP Mtr, Split Ph, ODP, 1/6 HP, 1140 rpm, 56Z

DAYTON| Zoro #: G1754085| Mfr #: 5K559

$168.48 /ea

qty
This item ships free. Details.Standard ground shipping.
Details:
Motor Bearings: BallMotor Application: General ApplicationMax. Ambient Temp.: 40 Degrees C
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G1754085 Mfr #: 5K559
Motor Bearings: BallMotor Application: General Application
Max. Ambient Temp.: 40 Degrees CMotor Efficiency Group: Standard Efficient
No. of Speeds: 1Motor Mounting Type: Cradle Base
Item: General Purpose MotorLength Less Shaft: 8-1/2"
HP: 1/6Manufacturers Warranty Length: 1 yr.
Overall Length: 10-5/16"Shaft Dia.: 1/2"
Frame Material: Rolled steelMotor Shaft Rotation: CW/CCW
Motor Enclosure Design: Open DripproofStandards: UL (E47479), CSA (156060)
Nameplate RPM: 1140Duty: Continuous
Motor Service Factor: 1.35Phase: 1
Ins. Class: BVoltage: 115
Frame: 56ZMotor Design: Split-Phase
Motor Shaft Design: KeyedRPM Range: 1101-1200
Motor Thermal Protection: NoneVoltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Hz: 60Shaft Length: 1-7/8"
RPM Group: 1101-1200Footnotes: 31,50
Nominal Efficiency: 50.0%Full Load Amps: 4.5
Country of Origin (subject to change): Mexico

Description

General Purpose Motor, Split-Phase, Open Dripproof, 1/6 HP, Nameplate RPM 1140, 56Z Frame, Voltage 115, 60 Hz, 1 Phase, 4.5 Full Load Amps, No. of Speeds 1, Motor Mounting Type Cradle Base, Motor Thermal Protection None, Ins. Class B, 1.35 Motor Service Factor, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 10-5/16 In., Motor Shaft Design Keyed
