  6. High Torque Farm Duty Motor, Capacitor-Start, 3 HP, 230V AC, 1,740 Nameplate RPM, 184T Frame

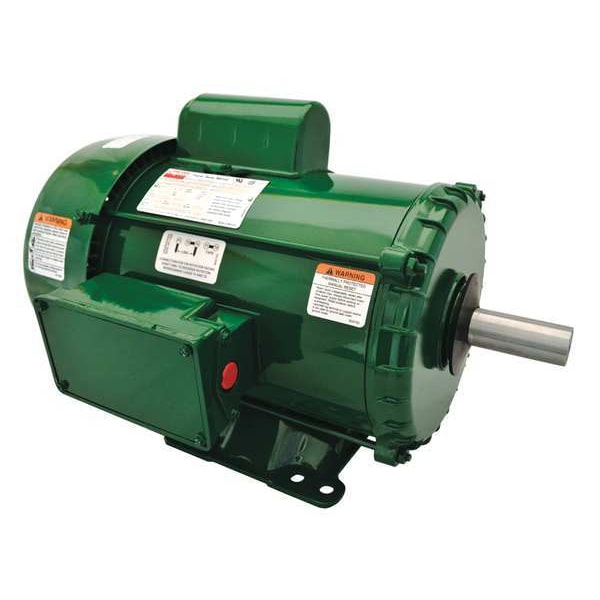

Dayton High Torque Farm Duty Motor, Capacitor-Start, 3 HP, 230V AC, 1,740 Nameplate RPM, 184T Frame 6K610 - main
Shop DAYTON

High Torque Farm Duty Motor, Capacitor-Start, 3 HP, 230V AC, 1,740 Nameplate RPM, 184T Frame

  • Mfr # 6K610

  • Zoro # G0453735

product price:  $1,321.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
HP
3
RPM Range
1,701-1,800
Voltage
230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
6K610
Zoro #
G0453735
UPC #
190735366219
Country of Origin
Mexico

Dimensions

Length Less Shaft
14 3/8 in
Shaft Length
2 3/4 in
Overall Length
17 1/8 in
Shaft Dia.
1 1/8 in

Details

Item
High Torque Farm Duty Motor
Motor Design
Capacitor-Start
Phase
Single
HP
3
RPM Range
1,701-1,800
Voltage
230V AC
Frame
184T
Motor Service Factor
1
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,740
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Sub Application
High Torque
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258525), UL Recognized (E47479)
Full Load Amps
14.5 A
Finish
Green
Max. Ambient Temperature
40 Degrees C
Item - Farm Duty Motors
High Torque Farm Duty Motor
Motor Bearings
Ball
Nominal Efficiency
79.6 %
Frame Material
Rolled steel
Hz
60 Hz
Duty
Continuous
Capacitor Required
Included
Ins. Class
F
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Includes
Shaft Key, Gasketed Conduit Box and Shaft Slinger
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Duty Cycle
Continuous

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 3 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 14.5 A, 184T Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel, Finish Green
