Shop DAYTON

HVAC Motor, 1/40 HP, 1550 rpm, 120V, 3.3

  • Mfr # 20HN81
  • Zoro # G7510571
product price:
$
46.79
/ea

Key Features

Voltage
120V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/40
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
20HN81
Zoro #
G7510571
UPC #
190735153369
Country of Origin
China
Voltage
120V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/40
RPM Range
1,501-1,600
Full Load Amps
0.37 A
Motor Service Factor
1
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Ins. Class
B
Motor Thermal Protection
Auto
Item
HVAC Motor
Stud/Base Mtg. Pattern
2 in x 2 in
Phase
Single
Mounting Pattern
2
Standards
CSA 244617, UL E37403
Motor Application
HVAC/R
Hz
60 Hz
Motor Mounting Type
Ring/Stud
Motor Bearings
Ball
Includes
Capacitor
Motor Sub Application
Direct Drive Fan/Blower
Motor Shaft Rotation
CW/CCW
Frame
3.3
Mounting Stud Location
4/Both Ends
Motor Shaft Design
Flat
Duty
Continuous
No. of Speeds
1
Plug Type
2 Prong Polarized
Max. Ambient Temp.
40 Degrees C
Motor Design
Permanent Split Capacitor
Number of Shafts
1
Capacitor Required
Capacitor Included
Motor Mounting Position
All Angle
Duty Cycle
Continuous
Mounting Stud Pattern
2
Mounting
Stud
Drive Type
Direct Drive
Full Load Current @ 60 Hz
0.37 A
Sub Application
General Purpose
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball
Frequency
60 Hz
Insulation Class
B
Motor Enclosure Type
Totally Enclosed Air-Over
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Flat

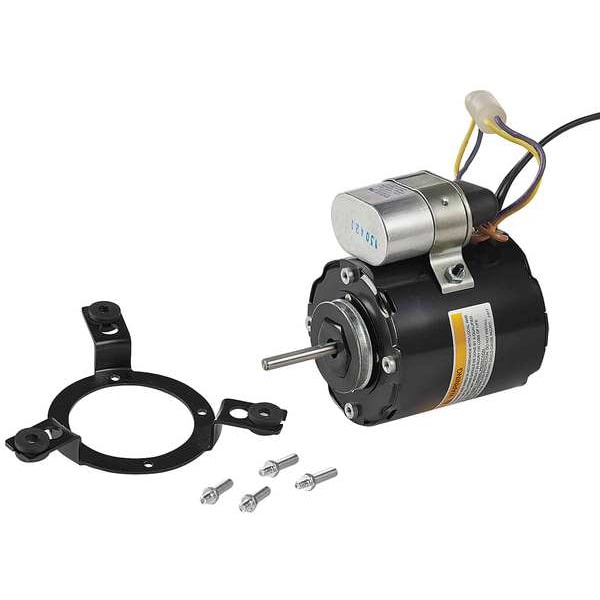

Description

HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/40 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 120V AC, 0.37 A Full Load Amps, 3.3 Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Shaft Length 1 1/2 in, Shaft Dia. 1/4 in
