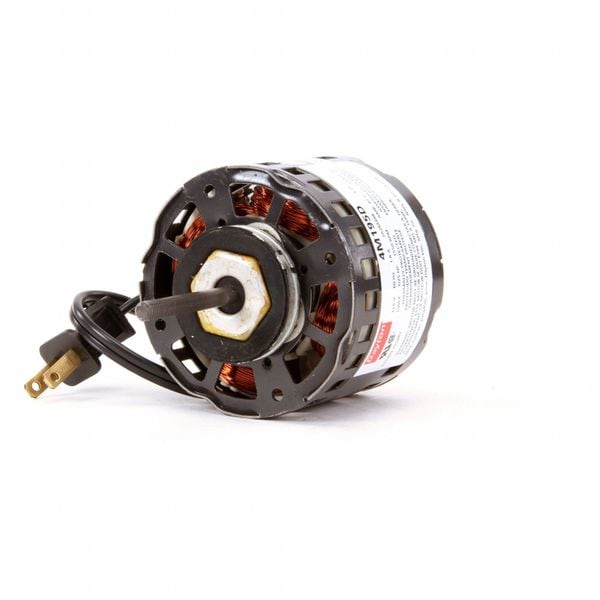

HVAC Motor, 1/25 HP, 1550 rpm, 115V, 3.3
Mfr # 71637644M
Zoro # G2305511
product price:Â $79.09
/eaKey Features
Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/25
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
71637644M
Zoro #
G2305511
UPC #
-
Country of Origin
Mexico
Dimensions
Body Dia.
3 5/16 in
Shaft Dia.
1/4 in
Cord Length
10 in
Length Less Shaft
4 15/16 in
Shaft Length
2 3/8 in
Overall Length
7 1/4 in
Body Diameter
3.3 in
Shaft Diameter
1/4 in
Frame Size
3.3
Description
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/25 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 1.8 A Full Load Amps, 3.3 Frame, Output Watts 30 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring
