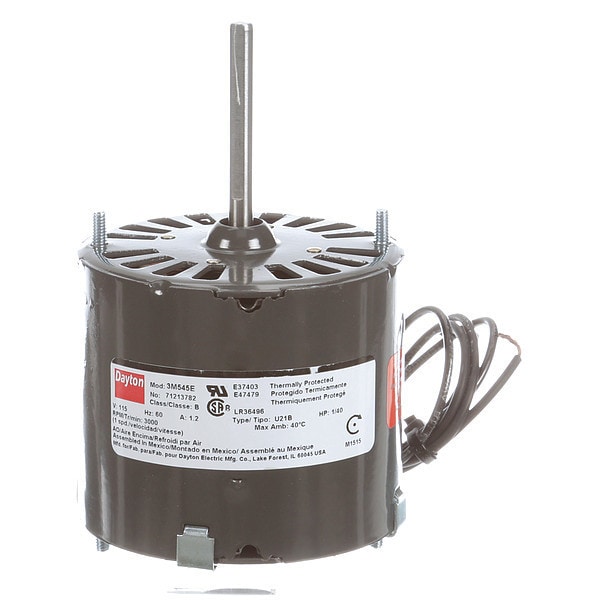

Dayton HVAC Motor, 1/40 HP, 3000 rpm, 115V, 3.3 71213782M - main

HVAC Motor, 1/40 HP, 3000 rpm, 115V, 3.3

  • Mfr # 71213782M

  • Zoro # G1395466

product price:  $60.89
/ea

Key Features

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/40
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71213782M
Zoro #
G1395466
UPC #
00663001432081
Country of Origin
Mexico

Dimensions

Length Less Shaft
3 5/16 in
Shaft Dia.
1/4 in
Cord Length
12 in
Shaft Length
2 3/8 in
Body Dia.
3 5/16 in
Shaft Diameter
1/4 in
Overall Length
5 5/32 in
Frame Size
3.3
Body Diameter
3.3 in

Details

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/40
RPM Range
1,801-3,000
Stud/Base Mtg. Pattern
2-7/8 in
Mounting Pattern
2-7/8
Motor Shaft Rotation
CWSE
Motor Design
Shaded Pole
Motor Sub Application
Direct Drive Fan/Blower
Motor Mounting Type
Ring/Stud
Phase
Single
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Bearings
Sleeve
Standards
CSA Certified, UL Recognized
Full Load Amps
0.9 A
Hz
60 Hz
Frame
3.3
Item
HVAC Motor
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Number of Shafts
1
Ins. Class
B
Motor Service Factor
1
Motor Application
HVAC/R
Duty
Continuous
Motor Shaft Design
Flat
No. of Speeds
1
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
Mounting Stud Location
2/Both Ends
Capacitor Required
Capacitor Not Required
Usable @ 208V
Not Usable at 208V
Mounting Stud Pattern
2 7/8 in
Motor Mounting Position
All Angle
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Mounting
Stud
Type
OEM Replacement
Wattage
19 W
Full Load Current @ 60 Hz
0.9 A
Drive Type
Direct Drive
Motor Enclosure Type
Open Air Over
Insulation Class
B
Sub Application
General Purpose
Shaft Design
Flat
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Sleeve
Frequency
60 Hz
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/40 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115V AC, 0.9 A Full Load Amps, 3.3 Frame, Output Watts 19 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
