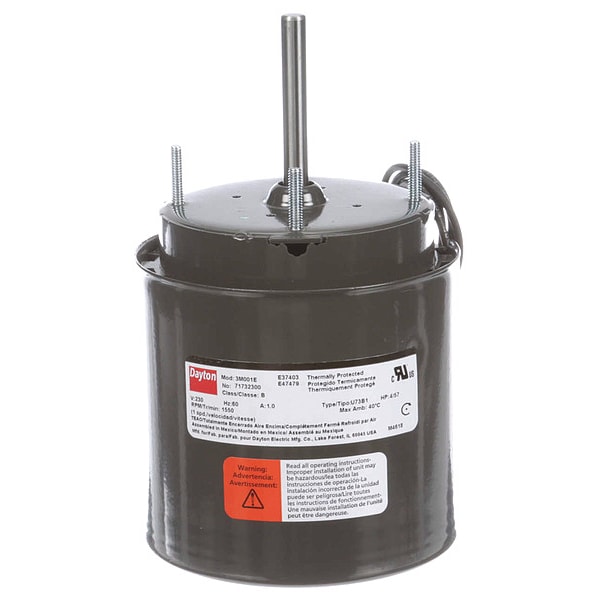

Dayton HVAC Motor, 1/20 HP, 1550 rpm, 230V, 3.3 71732300M - main

HVAC Motor, 1/20 HP, 1550 rpm, 230V, 3.3

  • Mfr # 71732300M

  • Zoro # G2093585

product price:  $90.69
/ea

Key Features

Voltage
230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Number of Speeds
1
HP
1/20
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
71732300M
Zoro #
G2093585
UPC #
-
Country of Origin
Mexico

Dimensions

Cord Length
12 in
Body Dia.
4 in
Shaft Dia.
5/16 in
Length Less Shaft
4 1/4 in
Shaft Length
2 1/4 in
Frame Size
3.3
Shaft Diameter
5/16 in
Overall Length
6 1/2 in
Body Diameter
4 in

Details

Voltage
230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Number of Speeds
1
HP
1/20
RPM Range
1,501-1,600
Item
HVAC Motor
Motor Shaft Design
Round
Full Load Amps
1 A
Stud/Base Mtg. Pattern
2 in x 2 in
Mounting Stud Location
4/Shaft End
Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
Standards
CSA Certified, UL Recognized (E37403)
Hz
60 Hz
Motor Shaft Rotation
CWSE
Phase
Single
Motor Sub Application
Direct Drive Fan/Blower
No. of Speeds
1
Duty
Continuous
Motor Service Factor
1
Frame
3.3
Motor Mounting Type
Ring/Stud
Motor Application
HVAC/R
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Motor Thermal Protection
Auto
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Motor Design
Shaded Pole
Number of Shafts
1
Ins. Class
B
Mounting Pattern
2 x 2
Capacitor Required
Capacitor Not Required
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Mounting Stud Pattern
2 in x 2 in
Motor Mounting Position
All Angle
Usable @ 200V
Not Usable at 200V
Mounting
Stud
Type
OEM Replacement
Wattage
37 W
Motor Enclosure Type
Totally Enclosed Fan Cooled
Insulation Class
B
Frequency
60 Hz
Bearing Type
Ball
Sub Application
General Purpose
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
1.0 A
Drive Type
Direct Drive
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Round

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 230V AC, 1.0 A Full Load Amps, 3.3 Frame, Output Watts 37 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Stud
