  11. HVAC Motor, 1/30 HP, 1550 rpm, 115V, 3.3

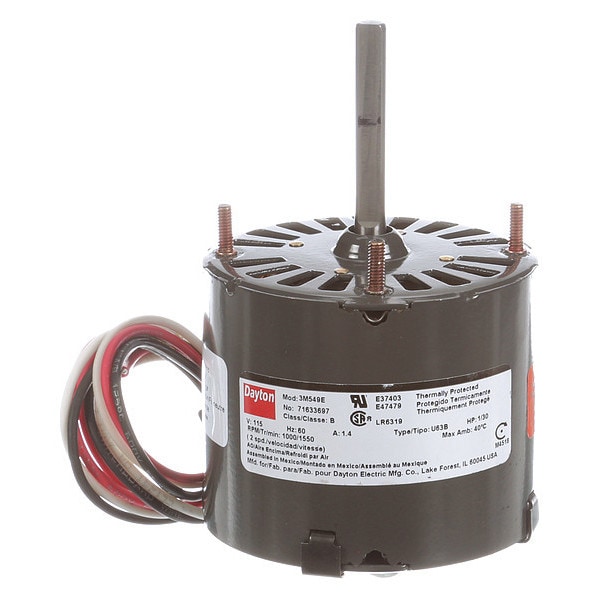

Dayton HVAC Motor, 1/30 HP, 1550 rpm, 115V, 3.3 71633697M - main

HVAC Motor, 1/30 HP, 1550 rpm, 115V, 3.3

  • Mfr # 71633697M

  • Zoro # G2165642

product price: $75.49
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
2
HP
1/30
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
71633697M
Zoro #
G2165642
UPC #
00663001432159
Country of Origin
Mexico

Dimensions

Length Less Shaft
2 7/8 in
Cord Length
21 in
Shaft Dia.
5/16 in
Shaft Length
2 3/8 in
Body Dia.
3 5/16 in

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
2
HP
1/30
RPM Range
1,501-1,600
Hz
60 Hz
Full Load Amps
1.2 A
Footnotes
9
Motor Shaft Design
Flat
Motor Design
Shaded Pole
Motor Bearings
Sleeve
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Max. Ambient Temp.
40 Degrees C
Motor Thermal Protection
Auto
Motor Application
HVAC/R
Item
HVAC Motor
Motor Service Factor
1
Stud/Base Mtg. Pattern
2 in x 2 in
Ins. Class
B
Mounting Stud Location
4/Shaft End
Phase
Single
Motor Mounting Type
Ring/Stud
Mounting Pattern
2 x 2
Motor Shaft Rotation
CWSE
No. of Speeds
2
Motor Sub Application
Direct Drive Fan/Blower
Standards
CSA Certified, UL Recognized
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Number of Shafts
1
Duty
Continuous
Frame
3.3
Capacitor Required
No
Usable @ 200V
No
Usable @ 208V
No
Duty Cycle
Continuous
Mounting Stud Pattern
2 in x 2 in
Motor Mounting Position
All Angle
Type
OEM Replacement
Mounting
Stud

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/30 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 2, Voltage 115V AC, 1.2 A Full Load Amps, 3.3 Frame, Output Watts 25 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
