Dayton

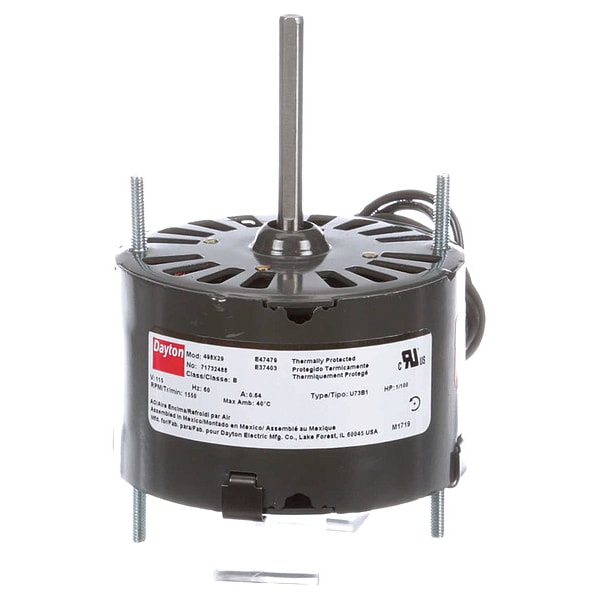

HVAC Motor, 1/100 HP, 1550 Nameplate RPM

product price: $55.25
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Nameplate RPM 1,550
  • Motor Enclosure Design Open Air-Over
  • Number of Speeds 1
  • HP 1/100
See all product information

Product Information

Dimensions

Shaft Length 2 1/4 in
Shaft Dia. 1/4 in
Body Dia. 3 5/16 in
Length Less Shaft 2 1/8 in

Details

Voltage 115V AC
Nameplate RPM 1,550
Motor Enclosure Design Open Air-Over
Number of Speeds 1
HP 1/100
RPM Range 1,501-1,600
Mounting Stud Location 2/Both Ends
Capacitor Required No
Plug Type None
Duty Continuous
Motor Mounting Type Stud
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Mounting Pattern 2-7/8
Number of Shafts 1
Motor Shaft Design Flat
Application HVAC/R
Ins. Class B
Motor Design Shaded Pole
Standards CSA Certified, UL Recognized
Hz 60 Hz
Item HVAC Motor
Motor Bearings Sleeve
Stud/Base Mtg. Pattern 2-7/8 in
Frame 3.3
Motor Shaft Rotation CCWSE
Motor Application HVAC/R
Motor Sub Application Direct Drive Fan/Blower
Motor Thermal Protection Auto
Full Load Amps 0.64 A
Motor Service Factor 1
Phase Single
Max. Ambient Temp. 40 Degrees C
No. of Speeds 1
Mounting Stud Pattern 2 7/8 in
Usable @ 208V No
Duty Cycle Continuous
Usable @ 200V No

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/100 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 0.64 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Number of Shafts 1
