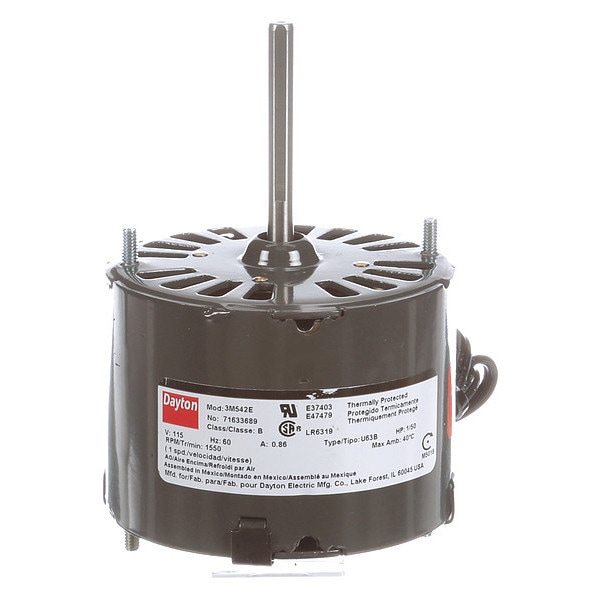

Dayton HVAC Motor, 1/50 HP, 1550 rpm, 115V, 3.3 71633689M - main

HVAC Motor, 1/50 HP, 1550 rpm, 115V, 3.3

  • Mfr # 71633689M

  • Zoro # G1751084

product price: $66.99
/ea

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/50
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
71633689M
Zoro #
G1751084
UPC #
00663001432012
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/4 in
Shaft Length
2 1/4 in
Body Dia.
3 5/16 in
Length Less Shaft
3 1/16 in
Cord Length
21 in

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/50
RPM Range
1,501-1,600
Motor Design
Shaded Pole
Motor Application
HVAC/R
Motor Bearings
Sleeve
Number of Shafts
1
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Mounting Stud Location
2/Both Ends
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Motor Shaft Rotation
CWSE
Ins. Class
B
Duty
Continuous
Frame
3.3
Motor Mounting Type
Ring/Stud
Hz
60 Hz
Phase
Single
Max. Ambient Temp.
40 Degrees C
Full Load Amps
0.8 A
Item
HVAC Motor
No. of Speeds
1
Mounting Pattern
2-7/8
Stud/Base Mtg. Pattern
2-7/8 in
Standards
CSA Certified, UL Recognized
Motor Shaft Design
Flat
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Motor Service Factor
1
Capacitor Required
No
Mounting Stud Pattern
2 7/8 in
Motor Mounting Position
All Angle
Usable @ 208V
No
Duty Cycle
Continuous
Usable @ 200V
No
Mounting
Stud
Type
OEM Replacement

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/50 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 0.8 A Full Load Amps, 3.3 Frame, Output Watts 15 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
