Shop DAYTON

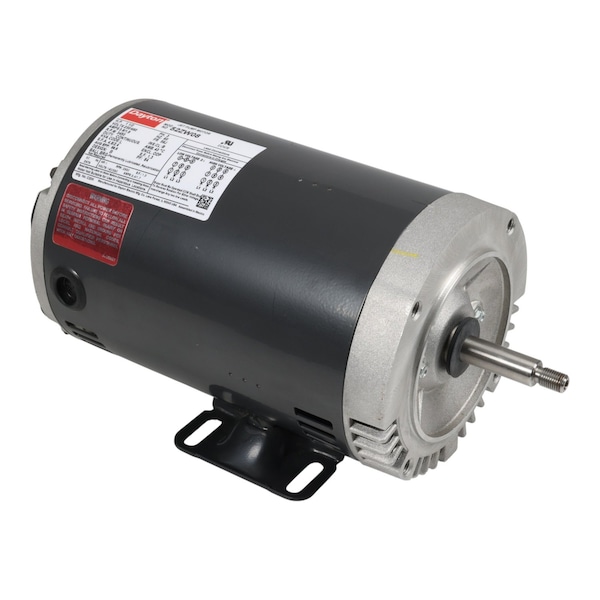

Jet Pump Motor, C-Face; Rigid Base, 56J

  • Mfr # 119806.00

  • Zoro # G7179929

product price:  $439.99
/ea
Free Shipping & Returns

Key Features

Standards
CSA Certified (LR2025), UL Recognized (E49747)
Shaft Dia.
5/8 in
CC Number
CC005A
Phase
Three
Voltage
230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
119806.00
Zoro #
G7179929
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Shaft Length
2 5/8 in
Length Less Shaft
10 3/8 in
Body Dia.
6.4 in
Overall Length
12 15/16 in
Body Diameter
6.4 in
Frame Size
56J
Shaft Diameter
5/8 in
Wire Rope Length
12 15/16 in

Details

Standards
CSA Certified (LR2025), UL Recognized (E49747)
CC Number
CC005A
Phase
Three
Voltage
230/460V AC
Motor Thermal Protection
None
Nominal Efficiency
86.5 %
Motor Shaft Rotation
CW/CCW
Frame
56J
Ins. Class
B
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Item
Jet Pump Motor
Motor Application
Pump
Motor Enclosure Design
Open Dripproof
Motor Shaft Design
JP Threaded
RPM Range
3,001-3,600
Motor Service Factor
1.3
Duty
Continuous
Shaft Material
Steel
Motor Sub Application
Jet Pump
Motor Mounting Position
Horizontal, Vertical Shaft Down
Nameplate RPM
3,450
HP
1 1/2
Full Load Amps
3.8/1.90 A
Motor Bearings
Ball
Motor Design
Three-Phase
Motor Mounting Type
Face/Base
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
No. of Speeds
1
Weight
42 lb
Finish
Unfinished
Usable @ 208V
Not Usable at 208V
Nameplate Service Factor @ 60 Hz
1.3
Product Type
Pump Motor
Number of Speeds
1
Mounting Position
Horizontal/Vertical Shaft Down
Shaft Thread Type
JP
Shaft Design
Threaded
Full Load Current @ 60 Hz
3.8/1.9 A
Efficiency Rating
Premium Efficiency (IE3)
Motor Enclosure Type
Open Drip Proof
Frame Finish
Unfinished
Frequency
60 Hz
Sub Application
Jet Pump
Number of Wires
9
Bearing Type
Ball
Application
Pump
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B

Description

Jet Pump Motor, Body Dia. 6.4 in, CC Number CC005A, Duty Cycle Continuous, Finish Unfinished, Frame 56J, Hz 60 Hz, Full Load Amps 3.8/1.90, HP 1 1/2, Ins. Class B, Length Less Shaft 10 3/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Efficiency Group NEMA Premium Efficient, Motor Enclosure Design Open Dripproof
