Shop LEESON

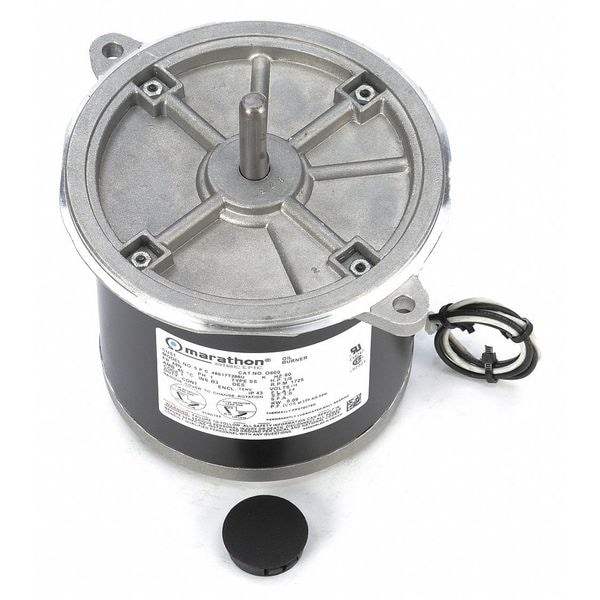

Oil Burner Motor, 1/8 hp

  • Mfr # 048S17T286
  • Zoro # G4804742
product price:
$
157.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Motor Enclosure Design
Totally Enclosed Nonventilated
HP
1/8
Nameplate RPM
1,725
Frame
48N
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
048S17T286
Zoro #
G4804742
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
1 3/4 in
Body Dia.
6 3/4 in
Manufacturers Warranty Length
1 yr
Shaft Dia.
1/2 in
Overall Length
7 9/16 in
Length Less Shaft
5 7/8 in
Lead Length
20 in
Frame Size
48N
Body Diameter
6.8 in
Shaft Diameter
1/2 in
Wire Rope Length
7 9/16 in
Length
7 9/16 in

Details

Item
Oil Burner Motor
Motor Design
Split-Phase
Motor Enclosure Design
Totally Enclosed Nonventilated
HP
1/8
Nameplate RPM
1,725
Frame
48N
Voltage
115V AC
Motor Mounting Type
Face
Motor Shaft Rotation
CW/CCW
Motor Application
HVAC/R
Motor Service Factor
1
Full Load Amps
2.6 A
Ambient Temperature
40 Degrees C
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
Hz
60 Hz
Standards
CSA Certified, UL Recognized
Ins. Class
B
Motor Bearings
Ball
RPM Range
1,701-1,800
Motor Thermal Protection
Manual
Motor Shaft Design
Flat
Motor Flange Material
Aluminum
Max. Ambient Temp.
40 Degrees C
Motor Sub Application
Oil Burner
Phase
Single
Motor Flange Type
Non-Ventilated
Features
NEMA N or M Flange Direct, Two Bolt
Usable @ 208V
Not Usable at 208V
Nominal Efficiency
50.5 %
No. of Speeds
1
Conduit Box Location
Exterior
Removable Base
No
Motor Frame Material
Steel
Output Watts
90 W
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
Horizontal or Vertical Shaft Up
Conduit Box Position
F1
Duty Cycle
Continuous
Weight
11 lb
Full Load Current @ 60 Hz
2.6 A
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Application
Oil Burner
Ambient Temperature - Maximum
40 Degrees C
Flange Type
Non-Ventilated
Duty
Continuous
Sub Application
Oil Burner
Drive Type
Direct Drive
Shaft Design
Flat
Number of Speeds
1
Manufacturers Warranty
1 yr
Frequency
60 Hz
Frame Material
Steel
Product Type
Oil Burner Motor
Wattage
90 W
Mounting Position
Horizontal
Insulation Class
B
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Capacitor Required
Capacitor Not Required

Description

HVAC Motor, Single Phase, Motor Design Split-Phase, 1/8 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 2.6 A Full Load Amps, 48N Frame, Output Watts 90 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face, Motor Frame Material Steel
