Shop DAYTON

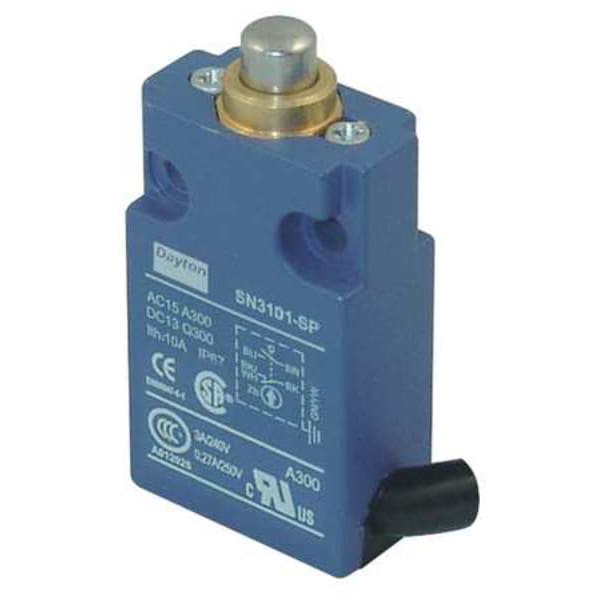

Limit Switch, Plunger, SPDT, 10A at 300V AC, Actuator Location: Top

  • Mfr # 12T944

  • Zoro # G4170783

product price:
$
47.15
/ea

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 300V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
12T944
Zoro #
G4170783
UPC #
190735116777
Country of Origin
China
Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 300V
DC Contact Rating - Limit Switch
10A at 300V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Contact Form - Limit Switch
SPDT
Operating Temp. Range
-14 Degrees to 185 Degrees F
Contact Form
SPDT
AC Contact Rating
10 A @ 300 V
Standards
CE, CSA, UL Listed
Number of Poles
1
Boot Sealed Actuator - Limit Switch
No
DC Contact Rating
10 A @ 300 V
Actuator Style (Limit Switch)
Plunger
Actuator Location (Limit Switch)
Top
Mounting Hole - Limit Switch
(2) 0.17 in dia
Mounting Hole Spacing - Limit Switch
0.79 in
Body Style (Limit Switch)
Miniature
Amps
10
Boot Sealed Actuator (Limit Switch)
No
IP Rating
IP67
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Limit Switch Style
General Purpose Limit Switch
Operating Force
40 oz
Actuator Style
Plunger
Actuator Location
Top
Movement
Vertical
Wiring Entry
Prewired Cable
Voltage Rating
300VAC/DC
Stem Thread - Limit Switch
No Stem
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
Basic Actuator Style (Limit Switch)
Plunger
Series
Dayton
NEMA Rating
12, 13, 4, 6, 6P
Electrical Connection
6 ft Cable, 5 Wire, 18 AWG
Mounting Hole Horizontal Center to Center Distance
20 mm
Directional Movement
Linear
Mounting Style
Surface
NEMA Enclosure Rating
12, 13, 4, 6, 6P
Boot Sealed Actuator
No Boot Included
Number of Mounting Holes
2
Action
A
Operating Force - Maximum
40 ozf
Operating Temperature - Maximum
185 Degrees F
Operating Temperature - Minimum
-14 Degrees F

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 300V, DC Contact Rating - Limit Switch 10A @ 300V, Contact Form- Switches SPDT, Body Height - Limit Switch 1.97 in, Body Width - Limit Switch 1.18 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 12, 13, 4, 6, 6P, Mounting - Limit Switch Surface, Electrical Connection Pre-Wired Cable
