  15. Limit Switch, Plunger, SPDT, 10A at 300V AC, Actuator Location: Top

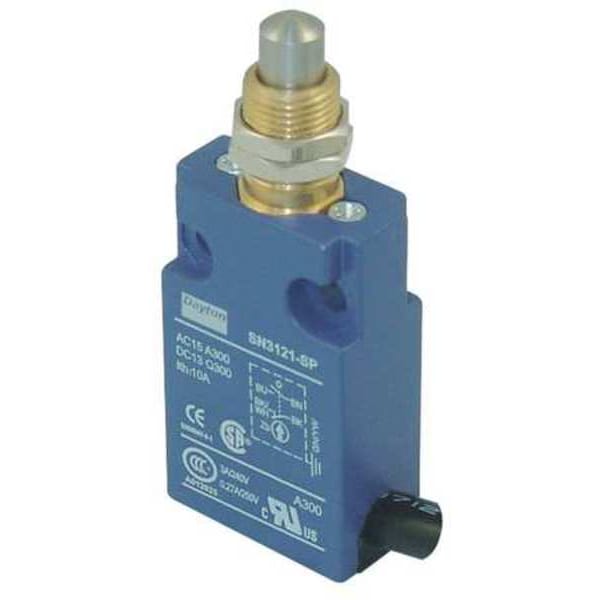

Dayton Limit Switch, Plunger, SPDT, 10A at 300V AC, Actuator Location: Top 12T956 - main

Limit Switch, Plunger, SPDT, 10A at 300V AC, Actuator Location: Top

  • Mfr # 12T956

  • Zoro # G4034764

product price: $51.49
/ea

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 300V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
12T956
Zoro #
G4034764
UPC #
190735116890
Country of Origin
China

Dimensions

Depth
0.63"
Body Depth - Limit Switch
0.63 in
Body Height - Limit Switch
1.97 in
Body Width - Limit Switch
1.18 in
Width
1.18"
Height
2.91"
Body Width
1.18 in
Mounting Hole Diameter
0.17 in
Body Depth
0.63 in
Body Height
1.97 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 300V
DC Contact Rating - Limit Switch
10A at 300V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Stem, Surface
DC Contact Rating
10A at 300V
Movement
Vertical
Mounting Hole Spacing - Limit Switch
0.79 in
Number of Poles
1
IP Rating
67
Contact Form
SPDT
Operating Force
40 oz
Contact Form - Limit Switch
SPDT
Amps
10
Boot Sealed Actuator - Limit Switch
No
Series
Dayton
Body Style (Limit Switch)
Miniature
Voltage Rating
300VAC/DC
Wiring Entry
Prewired Cable
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Actuator Style
Plunger, Thread Mount
Electrical Connection
6 ft Cable, 5 Wire, 18 AWG
Limit Switch Style
General Purpose Limit Switch
Boot Sealed Actuator (Limit Switch)
No
Operating Temp. Range
-14 Degrees to 185 Degrees F
AC Contact Rating
10A at 300V
Actuator Location (Limit Switch)
Top
Stem Thread - Limit Switch
M14 x 1.00 in
Actuator Style (Limit Switch)
Plunger
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
NEMA Rating
12, 13, 4, 6, 6P
Mounting Hole - Limit Switch
(2) 0.17 in dia
Actuator Location
Top
Standards
CE, CSA, UL
Basic Actuator Style (Limit Switch)
Plunger
NEMA Enclosure Rating
12, 13, 4, 6, 6P
Mounting Hole Horizontal Center to Center Distance
20 mm
Number of Mounting Holes
2
Operating Temperature - Maximum
185 Degrees F
Mounting Style
Stem, Surface
Directional Movement
Linear
Operating Temperature - Minimum
-14 Degrees F
Boot Sealed Actuator
No Boot Included
Action
A
Operating Force - Maximum
40 ozf

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 300V, DC Contact Rating - Limit Switch 10A @ 300V, Contact Form- Switches SPDT, Body Height - Limit Switch 1.97 in, Body Width - Limit Switch 1.18 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 12, 13, 4, 6, 6P, Mounting - Limit Switch Stem, Surface

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
