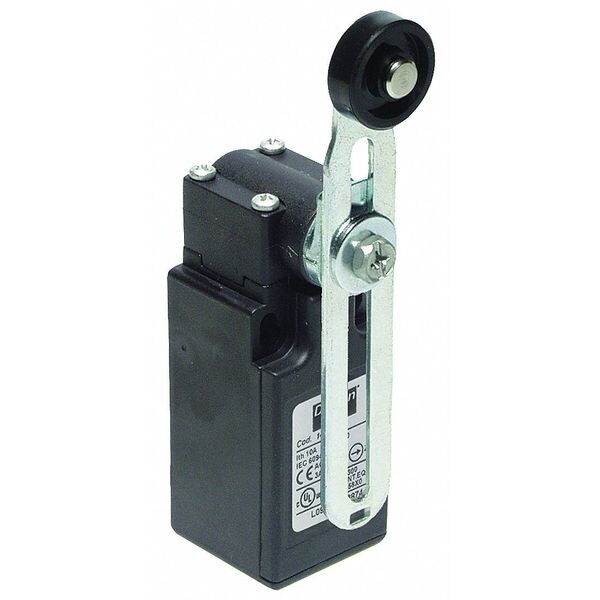

Limit Switch, Rotary, Roller Lever, 1NC/1NO, 10A @ 480V AC, Actuator Location: Side

  • Mfr # 14H179

  • Zoro # G4327294

product price:
$
30.19
/ea

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Rotary, Roller Lever
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A @ 480V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
14H179
Zoro #
G4327294
UPC #
190735128909
Country of Origin
Brazil
Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Rotary, Roller Lever
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A @ 480V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
Amps
10
Operating Temp. Range
32 Degrees to 185 Degrees F
Mounting Hole - Limit Switch
(2) 0.16 in dia
Actuator Style
Rotary Lever Roller
IP Rating
IP66
Actuator Location
Side
Body Style (Limit Switch)
Miniature
Limit Switch Style
General Purpose Limit Switch
Mounting Hole Spacing - Limit Switch
0.87 in
Actuator Style (Limit Switch)
Rotary, Roller Lever
Operating Force
8.50 in-oz
Boot Sealed Actuator (Limit Switch)
No
Wiring Entry
1/2 in NPT
Series
Dayton
Contact Form - Limit Switch
1NC/1NO
NEMA Rating
No Nema Rating
Voltage Rating
480VAC
Stem Thread - Limit Switch
No Stem
Actuator Location (Limit Switch)
Side
Electrical Connection
Screw Terminal
Standards
CE, CSA, UL Listed
DC Contact Rating
Not Rated
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Contact Form
1NO/1NC
AC Contact Rating
10 A @ 480 V
Movement
Omnidirectional
Boot Sealed Actuator - Limit Switch
No
Body Material
Thermoplastic
Basic Actuator Style (Limit Switch)
Rotary
Number of Mounting Holes
2
Operating Temperature - Minimum
32 Degrees F
Directional Movement
Omnidirectional
Boot Sealed Actuator
No Boot Included
Operating Torque - Maximum
8.5 in-oz
Mounting Hole Horizontal Center to Center Distance
22 mm
Operating Temperature - Maximum
185 Degrees F
Mounting Style
Surface

Description

Limit Switch, Actuator Style - Limit Switch Rotary, Roller Lever, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 480V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 4.41 in, Body Height - Limit Switch 2.46 in, Body Width - Limit Switch 1.21 in, Body Depth - Limit Switch 1.21 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating No NEMA Rating
