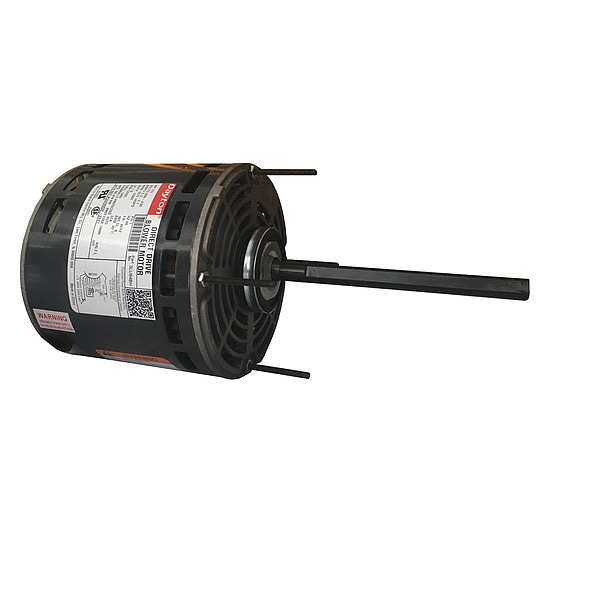

Dayton Motor, 1/2hp, D/D Blower 3LU84 - main

Motor, 1/2hp, D/D Blower

  • Mfr # 3LU84

  • Zoro # G1339992

product price: $241.99
/ea
Free Shipping & Returns

Key Features

Hz
60 Hz
Nameplate RPM
1,075
Shaft Dia.
1/2 in
Ring to Ring Center
6 in
Standards
CSA Certification (258501), UL Recognition (E37403)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3LU84
Zoro #
G1339992
UPC #
190735291160
Country of Origin
Multiple

Dimensions

Shaft Dia.
1/2 in
Resilient Ring Dia.
2 1/4 in
Bolt Circle Dia.
5 1/8 in
Length Less Shaft
6 7/16 in
Shaft Length
6 in
Body Dia.
5 5/8 in
Overall Length
12 7/16 in

Details

Hz
60 Hz
Nameplate RPM
1,075
Ring to Ring Center
6 in
Standards
CSA Certification (258501), UL Recognition (E37403)
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Motor Application
HVAC/R
No. of Speeds
4
Voltage
208-230V AC
Ins. Class
B
Motor Thermal Protection
Auto
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Motor Design
Permanent Split Capacitor
Motor Shaft Rotation
CW/CCW
Duty
Continuous
Capacitor Required
2MDV6
RPM Range
1,001-1,100
Frame
48YZ
Motor Sub Application
Direct Drive
Phase
Single
Motor Service Factor
1
Application
Blowers, Fans and Air Circulators
Item
Direct Drive Blower Motor
Includes
Kit for 2.5 in Hub Ring Assembly
Full Load Amps
3.3-3.1 A
Motor Bearings
Sleeve
Motor Mounting Position
All Angle
Motor Shaft Design
Double-Flat
Motor Mounting Type
Ring/Stud
Motor Enclosure Design
Open Air-Over
HP
1/2
Duty Cycle
Continuous
Mounting
Stud
Number of Speeds
4

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 4, Voltage 208-230V AC, 3.3-3.1 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Stud, Motor Mounting Position All Angle, Shaft Length 6 in
