Shop All Permanent Split Capacitor Blower Motors
Dayton

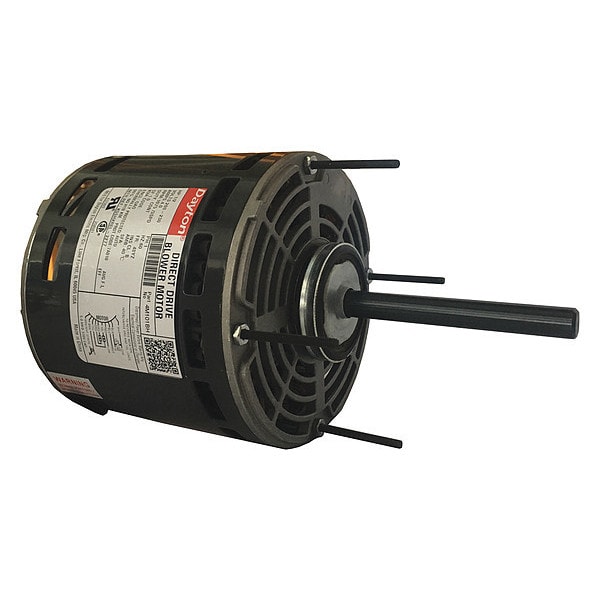

Motor, 1/2hp, D/D Blower

product price: $160.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Overall Length 10 3/16 in
  • Includes Split Rings to Increase Ring Diameter to 2 1/2 in
  • Nominal Efficiency 58.5 %
  • Phase Single
  • Nameplate RPM 1,075
See all product information

Product Information

Dimensions

Overall Length 10 3/16 in
Shaft Dia. 1/2 in
Length Less Shaft 6 3/16 in
Bolt Circle Dia. 5 1/8 in
Resilient Ring Dia. 2 1/4 in
Shaft Length 4 in
Body Dia. 5 5/8 in
Stud Size 8-32 NC 2A Thread x 1 5/8 in

Details

Includes Split Rings to Increase Ring Diameter to 2 1/2 in
Nominal Efficiency 58.5 %
Phase Single
Nameplate RPM 1,075
Motor Mounting Position All Angle
HP 1/2
Capacitor Required 2MDV4
Full Load Amps 4-4.0 A
Max. Ambient Temp. 40 Degrees C
Motor Design Permanent Split Capacitor
Application Blowers, Fans and Air Circulators
Motor Bearings Sleeve
Voltage Compatibility 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Motor Thermal Protection Auto
Standards CSA Certification (258501), UL Component Recognition (E37403)
Motor Service Factor 1
Motor Mounting Type Ring/Stud
Motor Application HVAC/R
Hz 60 Hz
Motor Shaft Rotation CW/CCW
No. of Speeds 3
Duty Continuous
Ins. Class B
Motor Enclosure Design Open Air-Over
Frame 48YZ
RPM Range 1,001-1,100
Motor Shaft Design Flat
Voltage 208-230V AC
Item Direct Drive Blower Motor
Ring to Ring Center 5 3/4 in
Motor Sub Application Direct Drive
Duty Cycle Continuous
Mounting Stud
Number of Speeds 3

Description

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 208-230V AC, Full Load Amps 4-4.0 A, 48YZ Frame, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring/Stud, Motor Mounting Position All Angle
