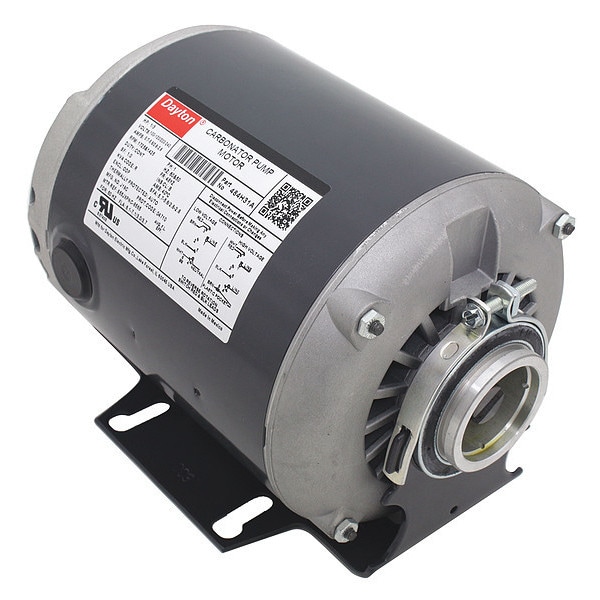

Dayton Motor, 1/3 HP, 1,725/1,425 rpm, 120/240V 484H31 - main

Motor, 1/3 HP, 1,725/1,425 rpm, 120/240V

  • Mfr # 484H31

  • Zoro # G9232935

product price:  $294.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/3
Nameplate RPM
1,725
RPM Range
1,701-1,800
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
484H31
Zoro #
G9232935
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Overall Length
8 3/16 in
Shaft Length
1/2 in

Details

Item
Carbonator Pump Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/3
Nameplate RPM
1,725
RPM Range
1,701-1,800
Voltage
120/240V AC
Frame
48YZ
Motor Service Factor
1
Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
Motor Mounting Type
Cradle Base
Phase
Single
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
Auto
Standards
CSA (258501), UL (37403)
Motor Application
Pump
Hz
60/50
Motor Sub Application
Carbonator Pump
Full Load Amps
5.7-5.6/2.8-2.8
Ins. Class
B
RPM @ 50Hz
1,425
No. of Speeds
1

Description

Carbonator Pump Motor, CC Number CC030A, Conduit Box Location Exterior, Conduit Box Position Not Applicable, Diaphragm Type Not Applicable, Duty Cycle Continuous, Frame 48YZ, Hz 60/50, Full Load Amps 5.7-5.6/2.8-2.8, Height 8 3/16 in, HP 1/3, Includes CLAMP, SCREW, TYPE C, BOOKLET, Ins. Class B, Inverter Rated Not Applicable, Lead Length Not Applicable, Length Less Shaft 8 3/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Split-Phase
