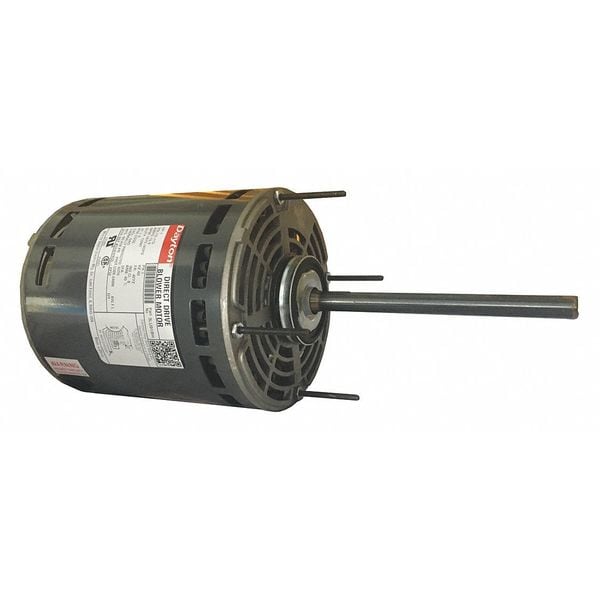

Motor, 1hp, D/D Blower

DAYTON| Zoro #: G2338226| Mfr #: 3LU91

$185.61 /ea

This item ships free. Details.Standard ground shipping.
Details:
Bolt Circle Dia.: 5-1/8"
Shaft Dia.: 1/2"
Application: Blowers, Fans and Air Circulators
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G2338226 Mfr #: 3LU91
Bolt Circle Dia.: 5-1/8"Shaft Dia.: 1/2"
Application: Blowers, Fans and Air CirculatorsShaft Length: 6"
Motor Application: HVAC/RCapacitor Required: 2MDW2
Duty: ContinuousMotor Thermal Protection: Auto
Motor Shaft Rotation: CW/CCWRPM Range: 1001-1100
Ring to Ring Center: 7"Standards: UL Recognition (E37403), CSA Certification (258501)
Motor Mounting Type: Ring/StudLength Less Shaft: 7-7/16"
Body Dia.: 5-5/8"Item: Direct Drive Blower Motor
Motor Design: Permanent Split CapacitorPhase: 1
Resilient Ring Dia.: 2-1/4"Motor Enclosure Design: Open Air-Over
Overall Length: 13-7/16"Mounting Stud Pattern: 3-5/8" x 3-5/8"
Motor Service Factor: 1.00Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Motor Mounting Position: All AngleFull Load Amps: 14.7
Hz: 60Motor Bearings: Sleeve
HP: 1No. of Speeds: 4
Ins. Class: BIncludes: Kit for 2.5" Hub Ring Assembly
Motor Shaft Design: Double-FlatMax. Ambient Temp.: 40 Degrees C
Frame: 48YZMotor Sub Application: Direct Drive Fan/Blower
Voltage: 115Nameplate RPM: 1075
Country of Origin (subject to change): China

Description

Direct Drive Blower Motor, Permanent Split Capacitor Motor Type, Open Air-Over Enclosure, 1 HP, 1075 Nameplate RPM, Voltage 115, 14.7 Full Load Amps, 60 Hz, 1 Phase, 48YZ Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 4, Mounting Stud, Bearings Sleeve, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 5-5/8 In., Length Less Shaft 7-7/16 In., Overall Length 13-7/16 In., Shaft Dia. 1/2 In., Shaft Length 6 In.
